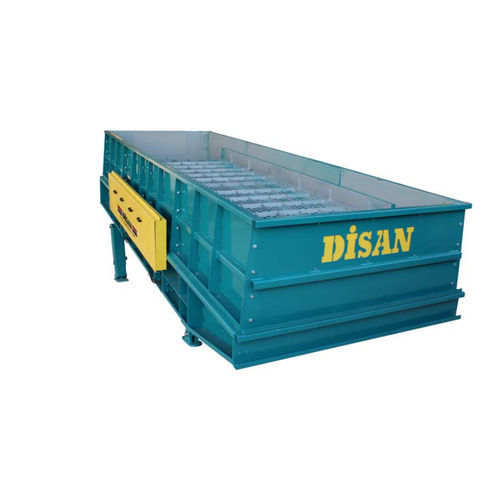

Ballistic separator DBS series

paperfor cans

Ballistic separators are the systems which separates the 3 dimensional material such as P.E.T. bottle, HDPE, Cans, etc… and 2 dimensional material such as cardboard, paper, nylon, etc… and fine materials. Triple separation of materials are accomplished based on density, moment of inertia and geometry. Materials with high density and bigger size materials moves downwards because of the movement of pallet. Low density materials and flat shaped materials moves upward and materials smaller than a certain size falls down through the holes. We manufacture ballistic separator according to required capacity and demand. SCREENING AREA - 10m² - 15m² - 17,5 m² PALLET WIDTH - 2000 mm - 3000 mm - 3500 mm PALLET LENGTH - 5000 mm - 5000 mm - 5000 mm SCREENING ANGLE - 8-15 ° - 8-15 ° - 8-15 ° MOTOR POWER - 7,5 kW + 7,5 kW - 11 kW + 11 kW - 11 kW + 11 kW THEORETICAL CAPACITY - 60m³/h - 90m³/h - 105m³/h
