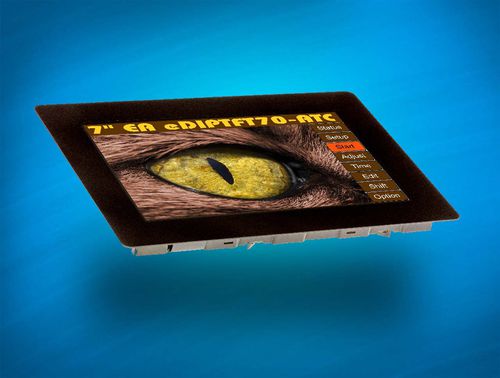

TFT LCD display EDIPTFT series

resistive touch screenprojected capacitive touchscreencolor

As the first in the world we do provide TFT displays with 3.2", 4.3" and 7", which are immediately running and do provide from the first minute the full functionality. These displays do require a single supply 5V= (EA eDIPTFT32: 5V= or 3.3V=) and an interface RS-232, I²C or SPI only. All character sets and control /graphic functions to build-up a screen are immediately available. no PC / embedded system necessary low power with max. 900mW (except 5.7" and 7": 3.5W) no training for a new software and programming tools necessary full function already immediately after power-on drastically reduced time-to-market tested functions validated hundreds of times unparalleled flexibility thanks to powerful commands and a variety of interfaces (RS-232, I²C, SPI) extremely compact construction and not the least important benefit: a clear price advantage compared to individualized solutions information flyer as a pdf file There are a lot of different fonts in various sizes built-in already. Additionally all Windows fonts can be included (also cyrillic, hebrew etc.). For vertical usage (portrait mode) display snd all fonts can be rotated by 90° steps. Such as the touch key, bargraph, area, picture, animation, centered strings... are already built-in. You can therefore create the screen layout you want with just a few, easily understood commands. All the commands are based on coordinate specifications and can therefore be applied and moved to the nearest pixel. There is a built-in self-test facility for demonstration purposes and initial testing: simply set the "Test" pin to low.
