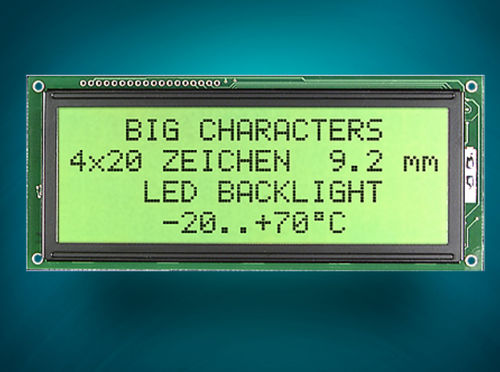

Dot-matrix display

LEDLCD2-line

The dotmatrix LCDs offered here are equipped with the controller HD44780 or compatible; they provide a complete character set and are configured for operation on the 4- or 8-bit data bus of a processor system. There are R/W, RS and Enable control lines. Please ask about special models with an extended temperature range, a Cyrillic character set or a soldered connector. Semi-customized solutions are possible as of 50 units. The accessories we supply for dotmatrix LCDs include suitable bezels and RS-232 interfaces. We have a large stock and can thus deliver many models immediately from our stock in Gilching near Munich. As a special we do have displays with I2C bus and SPI interface also. The series we are talking about here is an LCD dotmatrix series complete with a control interface and bezel. The LCD module, which includes an RS-232 interface, is delivered as a unit. It is connected to a standard RS-232C interface (or, alternatively, an RS-422). Accessories Bezels All bezels are available with an anti-glare screen. The bezels are simply inserted into the frontal cutout. This gives your unit a professional look, and at the same time the anti-glare screen prevents the integrated display from being touched or getting dirty. The anti-glare screen makes the display considerably easier to read. Please refer to the tables for dotmatrix modules for the order numbers of the various bezels. You will find more information on bezels in our data sheet, which is available in PDF format, or on our accessories page. Inverters for CFL- and EL-foil illumination In contrast to LED illumination, CFL and EL illumination requires a series-connected electronic circuit
