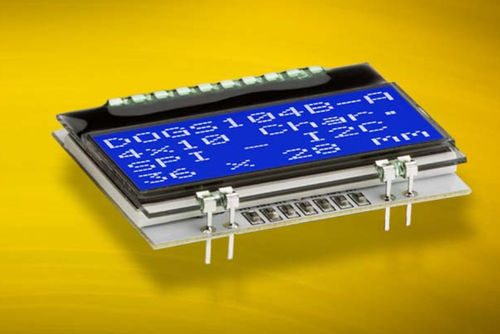

LED display DOG Series

TFT LCDFSTNLCD STN

Combine display and colour as desired. Power supply single 3.3V. Standard SPI bus interface. Long term availability. COG Chip-on-glass. Displays according to your needs 1. Select a display from 13 different sizes (text and graphics). 2. Combine it with different backligt colours 3. Add a touch panel if required Backlight in white, yellow/green, blue, amber, RGB 3,3V low power from 150µA with pins for mounting There are currently 13 different display sizes available, all in STN transmissive and reflective, STN blue, FSTN positive and negative: A great help for orientation in the "colour-jungle" the DOG-Simulator is an excellent tool: all displays (text and graphic) as well as all different backlight options can be simulated on screen. Free of charge! The test board EA 9780-4USB adapt all display with its multiple sockets. Even all modules with and without backlight are supported. The displays do show the individual text and pictures from simulator immediately - without any development action. In addition to that the backlight can be switched on and off. This makes possible a realistic test operation. Without the need to write software or to create any hardware adaptor. Immediately and as easy as ABC. That's the easy way driving a display: the Arduino concept provides a very good base for such. Some displays in EA DOG series we do support with all things to bring the display into operation with an Arduino Uno easyly: Sketches, Libraries, Documentation, EAGLE *.brd and *.sch Files. We also do provide non-assembled pcb boards.
