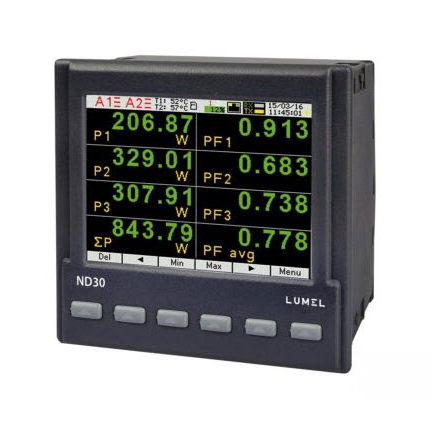

Electrical network analyzer ND30

voltageharmoniccolor

Description CENTRAL MEASUREMENT ND30 Measurement and recording of 54 power supply network parameters, including up to 51th harmonic voltage and current, in balanced 1-phase 2-wire or 3-phase or 4-wire balanced and unbalanced systems. Graphic color screen: 3.5-inch TFT LCD, 320 x 240 pixels, fully configurable by a user (10 tracks, 8 parameters in each) The indications include the values ​​of the programmed transformation ratios. Memory of minimum and maximum values. 2 configurable alarm outputs. Optional: 0/4 … 20 mA analog output and 2 PT 100 inputs (for example, for measuring the transformer temperature). Archiving of data in the internal memory 8 GB (option). RS-485 digital output – MODBUS protocol. Easy-to-use Ethernet interface 10/100 BASE-T (optional) Protocol: MODBUS TCP / IP, HTTP, FTP. Services: WWW server, FTP server, DHCP client Programming parameters using free eCon software RTC reserve battery. Overall dimensions: 96 x 96 x 77 mm.
