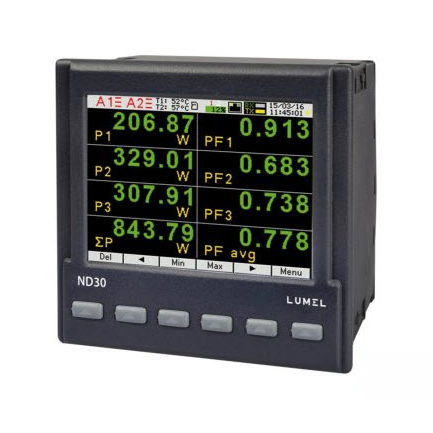

Electrical network analyzer ND30PNET
voltageharmoniccolor

electrical network analyzer
electrical network analyzer
electrical network analyzer
Add to favorites
Compare this product


Characteristics

Application domain
for electrical networks
Measured value
voltage, harmonic, color
Other characteristics
digital, graphic

Description

Description CENTRAL MEASUREMENT ND30PNET Measurement and registration of 54 power network parameters, including up to 51º harmonic of voltage and current, in systems of 1-phase 2-wire or three-phase 3 or 4-wire balanced and unbalanced. Color graphic display: 3.5-inch TFT LCD, 320 x 240 pixels, fully configurable by the user (10 vies, 8 parameters in each) The indications include the values ​​of the programmed transformation ratios. Memory of minimum and maximum values. 2 configurable alarm outputs. Optional: analog output 0/4 … 20 mA and 2 PT 100 inputs (for example, for the Transformer temperature measurement). RS-485 digital output – MODBUS protocol. Modern and easy-to-use Ethernet / Profinet interface (version 2.2). Parameter programming through free eCon software. RTC reserve battery. Overall dimensions: 96 x 96 x 77 mm.
