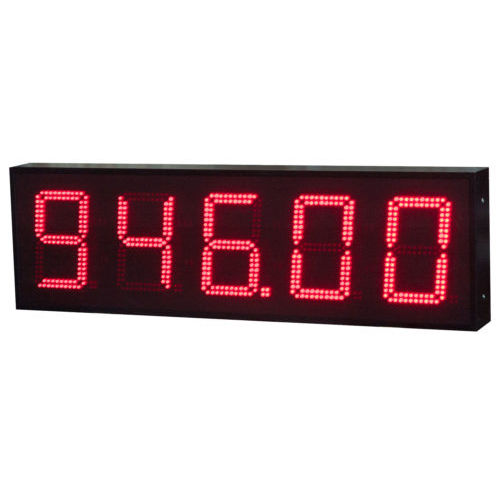

Alphanumeric display DN129/X

RS-232large-format

Description LARGE FORMAT DISPLAY SERIAL REPEATER RS-232 / RS-485 serial interface. Digits of 250mm height From 2 to 10 digits. 1 or 2 displaying sides. Application field: It shows data of internal registers from a PLC. It displays data created from a PC. It displays in big letters the lecture of voltmeters, temperature regulators, process controllers, etc. It displays data of users equipment based on microprocessors with RS-232 or RS-485 serial line, such large scales, electro medicine instruments, etc. Option to display the measures unities Kg, Tm, ºC, mV, m/s, l/s or any other unity, as the consumer desires,up to three characters. Perfect viewing: DN129/X display has an exceptional visibility. It can be read from 120 meters, thanks to its good contrast and its medium sized digits of 250mm. Protocols: ISO1745, Modbus, ASCII, Host-Link Slave Omron / Host-Link Master Omron. We can adapt the protocol to the customer’s need.
