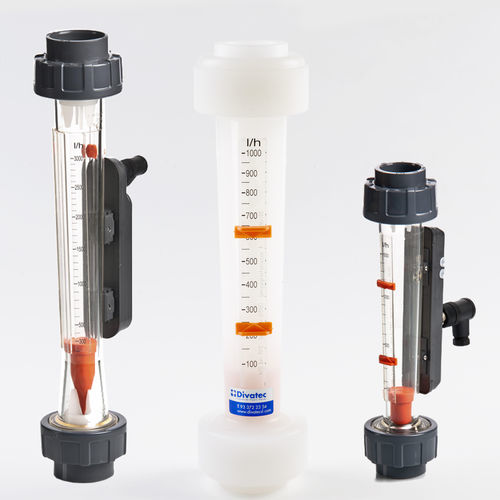

Variable-area flow meter DFM series

for waterfor acidsfor gas

Measuring range 3 up to 250 l/h Large selection of measuring ranges, nominal diameters, also for special media Suitable for a wide range of applications for gaseous media, water, alkalines, acids Direct visualisation of the measured values Accuracy class 4 Integrated mounting rail for flow data sensors Advantage • Measured measuring ranges oriented to practice according to DIN • Mounting length = type designation 165 mm • Mounting length = type designation 170 mm • Mounting length = type designation 185 mm • Mounting length = type designation 200 mm • Mounting length = type designation 335 mm • Mounting length = type designation 350 mm • Accuracy of the measurement according to VDI / VDE 3513 • Materials with reduced moisture absorption increase the stability of the measurement value • Automation of the process by optional components such as sensor of measured values ​​ZE 3000 or contacts of limit value ZE 950 / ZE 951 • Special scales depending on the characteristic of the fluid
