Overfil prevention level detector FLOTECH™ series

opticalfor oilfor tanks

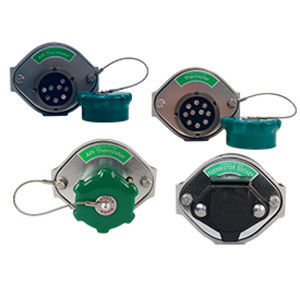

FLOTECH™ Overfill Sensor – 5-Wire and 2-Wire (ATEX) Markets: • - Oil & Gas • - Transport & Logistics (tank trucks, tankers, railcars) • - Chemical & Petrochemical Industry • - Hazardous Liquid Storage Industry Application: • - Accurate and reliable liquid level detection to prevent overfills. • - Used in level monitoring systems for tankers and industrial storage tanks. • - Compatible with API 5-wire optical systems and 2-wire thermo-optical systems. Features: • - Elastomer capsule installed at the prism for enhanced chemical resistance. • - Die-cast aluminum housing for high durability and extended lifespan. • - ATEX-compliant, designed for explosive risk zones. • - 5-year warranty, ensuring reliability and quality. Specifications: • - Certified ATEX - Group II, Category 1G equipment. • - Available in three lengths: o - 7’’ (178mm): 5-wire Ref. FT101-ATEX | 2-wire Ref. FT151-ATEX o - 12’’ (305mm): 5-wire Ref. FT101-12-ATEX | 2-wire Ref. FT151-12-ATEX o - 18’’ (457mm): 5-wire Ref. FT101-18-ATEX | 2-wire Ref. FT151-18-ATEX Dimensions: • - Available lengths: 7", 12", and 18" • - Compliant with API and thermo-optical mounting standards
