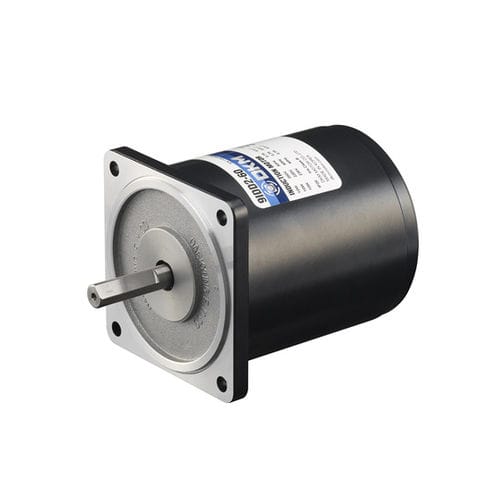

Induction motor IDG series

single-phase400 V380 V

Induction Motor - Constant speed with continuous operation - Stop in 2 sec. when switched off - Overrunn: 30-40 times - Possible for reverse rotation Suitable for Uni-directional Continuous Operation Induction motors are for uni-directional continuous operation such as conveyor belt system. Meet Safety Standards and Global Power Supply Voltages The most parts of models conform to CE and CCC marking. And they meet power supply voltage of North America, Asia and Europe. Single Phase Run For a single phase motor run, please use the condenser complying with the capacity of that motor. For a single-phase induction motor, it is not possible to reverse the direction within a short time during operation. So stop the motor first and change the direction next. Three Phase Run Three phase induction motor has relative higher starting torque comparing single phase and has high reliability because it can be operated by a three-phase power source directly.
