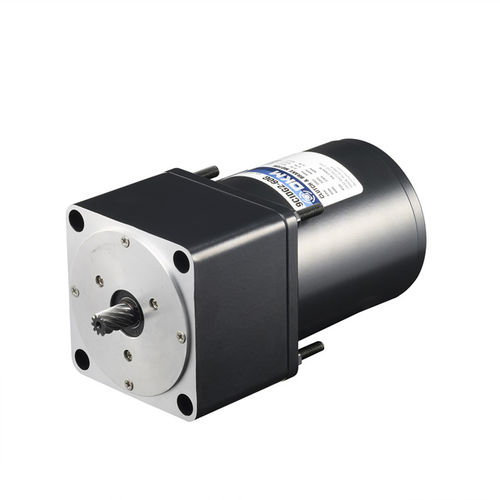

Gear-motor with integrated controller CSDG series

single-phaseinductionhelical gear

Speed Control Clutch & Brake Motor - Suitable for high frequent start and stop operation - Stop in 0.1 sec. when switched off - Overrun: 1 time - Possible for reverse rotation Speed Control Motor allows you to easily set and adjust the speed of the motor by using Speed Controller. Suitable for High-frequency Operation An internal clutch & brake mechanism for use with a gearhead is employed in DKM Clutch & Brake Motor. By the combination of a constantly rotating induction motor and a clutch and brake unit, the function of frequent start/stop, positioning, indexing, jogging and incremental feeding is available. Characteristics of C.B Motor DKM C.B Motor is designed for the quicker response time and higher torque to move the load. To meet high-frequency, starting and stopping applications, DKM uses a induction motor for its continuous duty rating. So Clutch & Brake Motor is not suitable for frequent bi-directional starting and stopping motion but suitable for uni-directional movement.
