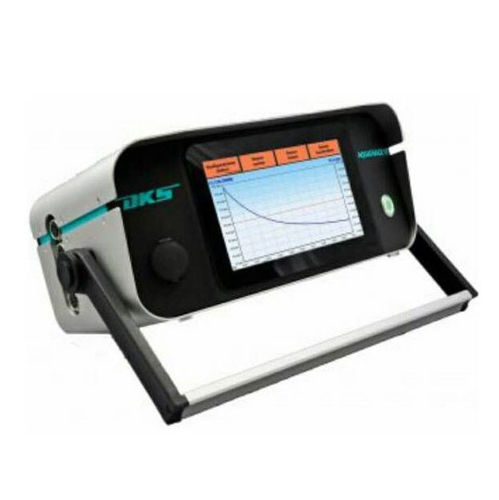

Moisture analyzer AQUATRACE® IV series

gastracehumidity

Designation: portable device for trace humidity / moisture traces The AQUATRACE® - IV Type - A can be used either as a battery-operated measuring device for mobile trace moisture measurement in gases or with power supply. AQUATRACE® - IV-family is supplemented by the AQUATRACE® -IV Type - A, a portable cordless tool with integrated power supply. The AQUATRACE® - IV Type T location-independent and flexible to use. Measuring device for mobile trace moisture measurement in gases. AQUATRACE® - IV-family is supplemented by the AQUATRACE® -IV Type T, a portable cordless tool with integrated power supply. After separation from the power, the device can work at least 2 hours without external power source. Assuming that the sensor coating is carried out in network operation All the known options of AQUATRACE® - IV are at the same levels of service. Technical specifications Product: AQUATRACE® IV - Typ A/T, mobile device with optional battery, 1-2 channels Performance specifications Measuring range: 0-2000 Vppm, dew point –100 ° C - 20 ° C, ranges deviating from the standard on request Accuracy: +/- 5% of the displayed value, at least 0.4 Vppm Response time: dry to wet: T90 <5 sec; Wet to dry: T90 <15 min Repeatability: +/- 0.1 ppm Calibration:traceable calibration certificate Display: Touchscreen 800x480 pixels, color
