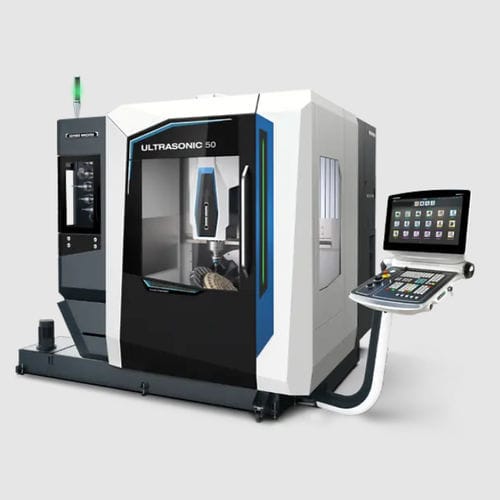

3-axis machining machine 50

5-axisuniversalHSK A-63

ULTRASONIC technology integration - reduced process forces for higher productivity Technology integration via HSK-A63 interface for ultrasonic superimposition of the tool rotation with amplitudes up to 15 µm Process forces reduced by up to 50% through ULTRASONIC enable, depending on requirements: higher feed rates, improved surface quality up to Ra <0.1 µm, longer tool life Specific coolant treatment systems with centrifuges, optimized for the ULTRASONIC processing of Advanced Materials ULTRASONIC 3rd Generation - Optimal process control through intelligent controls Constant amplitude in the process to ensure reproducibility Automatic detection of the working frequency, significantly improved hardware for signal acquisition Frequency tracking and simultaneous power control in real time for optimal process stability Ensuring the ULTRASONIC advantages even with non-optimal tools Fully compatible with 2nd generation ULTRASONIC actuator The right machine configuration for every requirement, from 3-axis to 5-axis simultaneously Attractive 3-axis entry-level machine for ULTRASONIC machining - rigid table with 630 mm x 500 mm clamping surface and a maximum workpiece weight of 300 kg Direct-Drive C-axis up to 300 rpm, with 4-channel rotary feedthrough for vacuum - the perfect machine for processing rings made of ceramic and quartz glass Adaptive auxiliary spindle ULTRASONIC microDRILL with up to 32,000 rpm for small bores from Ø 0.1 mm with maximum process reliability 5-Axes Machining with up to 20,000 rpm speedMASTER 15,000 rpm with 21kW and 111Nm in basic version speedMASTER 15,000 rpm with 46kW and 200Nm optionally available
