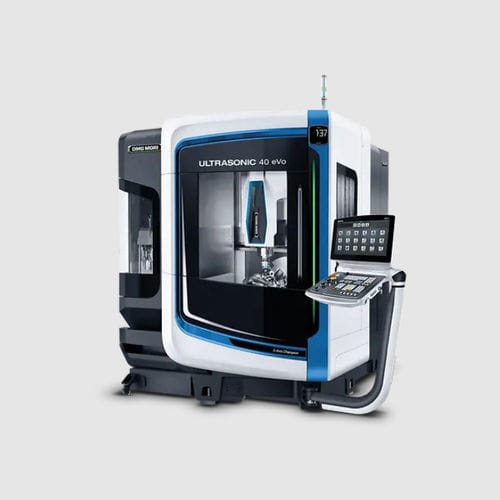

Ultrasonic machining machine 40 eVo linear

5-axisuniversalHSK A-63

ULTRASONIC technology integration - reduced process forces for higher productivity Technology integration via HSK-A63 interface for ultrasonic superimposition of the tool rotation with amplitudes up to 15 µm Process forces reduced by up to 50% through ULTRASONIC enable, depending on requirements: higher feed rates, improved surface quality up to Ra <0.1 µm, longer tool life Specific coolant treatment systems with centrifuges, optimized for the ULTRASONIC processing of Advanced Materials ULTRASONIC 3rd Generation - Optimal process control through intelligent controls Constant amplitude in the process to ensure reproducibility Automatic detection of the working frequency, significantly improved hardware for signal acquisition Frequency tracking and simultaneous power control in real time for optimal process stability Ensuring the ULTRASONIC advantages even with non-optimal tools Fully compatible with 2nd generation ULTRASONIC actuator 5-Axes Simultaneous Machining with proven Swivel Rotary Table Swivel range of the B-axis -5/ +110° Table load up to 250 kg Cooling of table unit table bearings and drives Mill-Turn Operation Speed of the C-axis up to bis 1,200 rpm Motorspindle with 18,000 rpm , 130 Nm and HSK A63 Spindles speedMASTER 20,000 rpm in standard version speedMASTER 15,000 rpm with 200 Nm (option) Motorspindle 24,000 rpm (option) Accuracy Cooling of table unit, table bearings and drives Cooling of bearings and spindle nuts of ball screw drives Cooled guideways in the linear axes X/Y/Z
