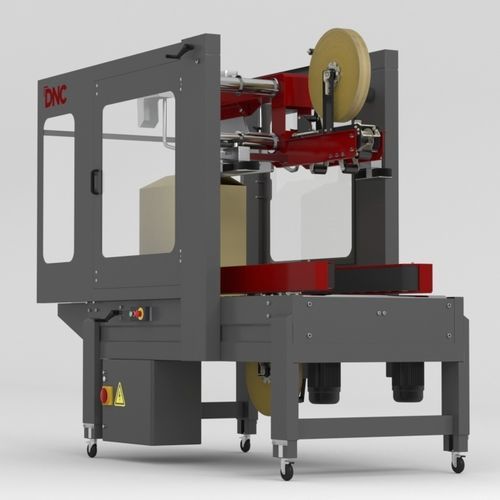

Double-flap case sealer 35 series

adhesive tapeautomaticgummed paper

Case sealers Serie 35 The perfect sealer to complete your line Information Automatic equipment designed for the upper and base sealing of boxes with adhesive tape or gummed paper. It can be manually adjusted quickly and simply to work with different box formats of reduced dimensions and weights. These machines incorporate the closing of the upper flaps and are designed to be integrated into production lines. They are robust, reliable and ideal for all different weights whilst being able to endure high levels of production. Advantage •Boxes are carefully pushed without damage •Tape easily and quickly reloaded •Possibility of sealing the upper or base part of boxes individually •Height adjustment •Fast and precise changes of format •Compatible with all types of tape •Compatible with a variety of widths •Boxes are perfectly sealed to gurantee correct stacking •Jamming prevention •Secure operation AUTOMATIC MONOFORMAT CASE SEALERS MODEL L35CS D37NC D38NC D39NC PE37NC Sealing type Tape, Hotmelt glue Gummed paper Maximum case sizes (outter sizes) L 610 mm 750 mm 750 mm 750 mm 750 mm W 500 mm 650 mm 800 mm 950 mm 650 mm H 500 mm 650 mm 900 mm 1000 mm 650 mm Minimum case sizes (outter sizes) L 120 mm 150 mm 150 mm 150 mm 150 mm W 110 mm 110 mm 110 mm 110 mm 110 mm H 120 mm 115 mm 115 mm 115 mm 115 mm Belt Speed 23 m/min 22 m/min TECHNICAL DATA Weight 300 kg 310 kg 330 kg 360 kg 390 kg Dimensions L 1960 mm 1828 mm 2480 mm 2480 mm 2480 mm W 900 mm 1014 mm 1315 mm 1315 mm 850 mm W 900 mm 1014 mm 1315 mm 1315 mm 850 mm Drive belts Lateral Belt height 50 mm 75 mm 75 mm 75 mm 75 mm Tape width 50 mm 50 mm 75 mm 75 mm 75 mm Working height 680-880 mm 520-750 mm 700-900 mm
