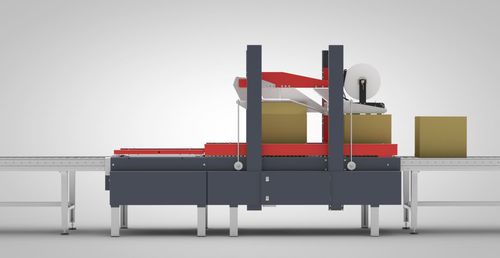

Double-flap case sealer 45 series

adhesive tapeautomaticgummed paper

Case sealers Serie 45 Simplifying work in production lines with multiple formats Information Automatic equipment designed for the upper and base sealing of boxes with adhesive tape or gummed paper. It uses automatic settings to work with alternating forms of box sizes and weights. These machines incorporate the closing of the upper flaps and are designed to be integrated into production lines. They are robust, reliable and ideal for all different weights whilst being able to endure high levels of production. Advantage •Boxes are carefully pushed without damage •Tape easily and quickly reloaded •Possibility of sealing the upper or base part of boxes individually •Height adjustment •Fast and precise changes of format •Compatible with all types of tape •Compatible with a variety of widths •Boxes are perfectly sealed to gurantee correct stacking •Jamming prevention •Secure operation SEMIAUTOMATIC MULTIFORMAT CASE SEALERS MODEL D45NC D47NC PE47NC Sealing type Tape Tape Gummed paper Maximum case sizes (outter sizes) L 650 mm 800 mm 800 mm W 500 mm 650 mm 650 mm H 500 mm 650 mm 650 mm Minimum case sizes (outter sizes) L 200 mm 200 mm 250 mm W 110 mm 110 mm 110 mm H 115 mm 115 mm 115 mm Belt Speed 22 m/min TECHNICAL DATA Weight 280 kg 340 kg 490 kg Dimensions L 2790 mm 2971 mm 3623 mm W 875 mm 1014 mm 1075 mm H 1639 mm 1756 mm 2200 mm Drive belts Lateral Belt height 50 mm 50 mm 50 mm Tape width 50 mm 50 mm 75 mm Working height 520-750 mm 520-750 mm 700-900 mm UTILITIES Electrical power 230/400V III+N+T 230/400V III+N+T 230/400V III+N+T Electrical consumption 0,55 kW/h 0,55 kW/h 1,2 kW/h Pneumatic pressure 6 bar Air consumption 8 l/case 8 l/case 10 l/case
