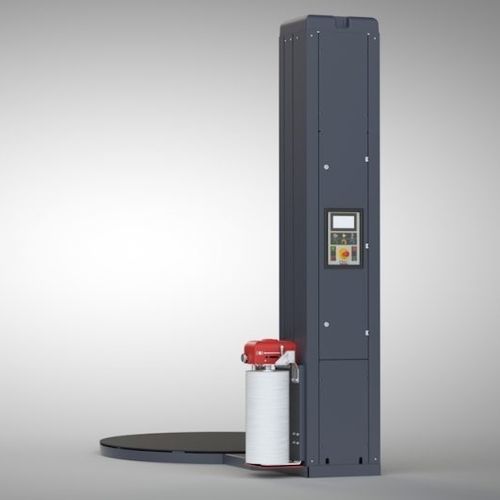

Turntable stretch wrapper Fenix serie
semi-automatic

turntable stretch wrapper
turntable stretch wrapper
turntable stretch wrapper
turntable stretch wrapper
Add to favorites
Compare this product

Characteristics

Type
turntable
Operating mode
semi-automatic
Rotational speed

14 rpm (88 rad.min-1)

Height

2,400 mm (94 in)

Width

1,000 mm (39 in)

Length

1,200 mm (47 in)

Description

Stretch wrappers Serie Fenix The taylor-made semi-automatic wrapping machine Information Basic semi-automatic stretch wrappers that wrap palletized loads and are designed to be customized for different load types. The cutting of film and attachment to the pallet must be performed manually, all other operations are completely automated and programmable. We offer a wide variety of options and accessories to adapt to the needs of your product and work environment. Advantage •Minimum film consumption •Easy operation •Tape reel is reloaded easily and quickly •Low maintenance •Functions smoothly to guarantee load stability •Secure operation •Multiple customization options SEMIAUTOMÁTIC STRECH WRAPPING FENIX PERFORMANCE Output Manual Pallet Maximum Sizes 1200 x 1000 mm Load Maximum Height 2400 mm Load Maximum Weight 2000 kg PLATFORM Turning Device Platform Turning Speed 14 RPM Diameter 1650 mm Height 82 mm MAIN FEATURES Load Fastening (tie) Manual Film Cutting Manual Remote Control Wrapping Programs 4 Film Tension Control Mecatens Pre-stretching Relation Platform Turning Speed Control √ Reel Carriage Speed Control √ Film Maximum Width 500 mm Film Capacity (Reel Diameter) 260 mm WEIGHT & SIZES Weight 440 kg Sizes L 2585 mm W 1650 mm H 2651 mm UTILITIES Electrics 230V II+T Consumption 1 kW/h OPTIONS Column Height 3500 mm Platform Width 2400 mm Platform Access Ramp √ Pit Frame for floor embedding √ Powered Pre-stretching √ Integrated Scale √ Dispensador de cobertura superior Manual Largest Maximum Load Weight Max. 3000 kg Raised Legs on Base √ Powered Top Platen to stabilise load √ Powered Rollers on Platform √ Double Rell Support√
