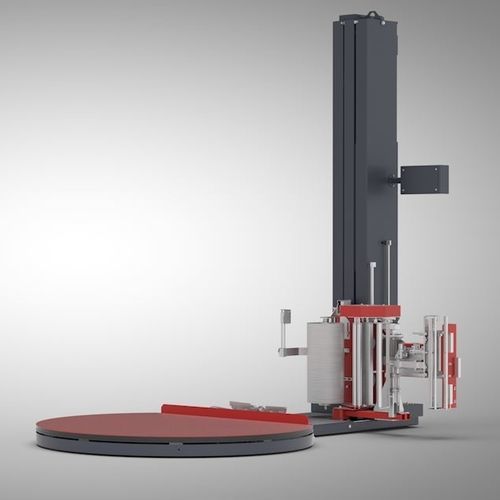

Turntable stretch wrapper Senior series
automaticpallet

turntable stretch wrapper
turntable stretch wrapper
turntable stretch wrapper
turntable stretch wrapper
turntable stretch wrapper
Add to favorites
Compare this product

Characteristics

Type
turntable
Operating mode
automatic
Product applications
pallet
Rotational speed

14 rpm (88 rad.min-1)

Height

2,636 mm, 2,800 mm (104 in)

Width

1,650 mm, 1,825 mm (65 in)

Length

2,815 mm, 2,900 mm (111 in)

Description

Stretch wrappers Serie Senior The basic stretch wrapper for automatic production lines Information Basic semi-automatic stretch wrappers that can wrap palletized loads and function as independent stations which can be initiated by remote control or integrated into a production line. They are designed to work with all load types and are completely customizable with a wide range of options, elements and accessories that facilitate the perfect solution for your production requirements and work environment. Advantage •Minimum film consumption •Easy operation •Tape reel is reloaded easily and quickly •Clean cutting of film •Notification when maintenance is required •Functions smoothly to guarantee load stability •Controlled end cycle position •Secure operation •Multiple customization options WRAPPING SERIE SENIOR PERFORMANCE SENIOR A SENIOR L Output Manual 20 pallets/hour Pallet Maximum Sizes 1200 x 1000 mm 1200 x 1000 mm Load Maximum Height 2400 mm 2400 mm Load Maximum Weight 2000 kg 1500 Kg TURNTABLE Turning Device Turntable Turntable Turning Speed 14 RPM 14 RPM Diameter 1650 mm 1825 mm Height 109mm 400 mm Conveyor Width PERFORMANCE FEATURES Fijación de la carga (atado) Automatic Manual Film Cutting Automatic Resistance Hotwelding on load √ Optional Remote Control √ Wrapping Programs 4 Film Tension Control Powered Pre-stretching Powered Pre-stretching Pre-stretching Relation 100 - 150 -250% 100 - 150 -250% Platform Turning Speed Control √ √ Reel Carriage Speed Control √ √ Film Maximum Width 500 mm 500 mm Film Capacity (Reel Diameter) 260 mm 260 mm Powered Roller Platform OPTIONS Column Height 3500 mm 3400 mm Platform Width 2400 mm 2500 mm

VIDEO
