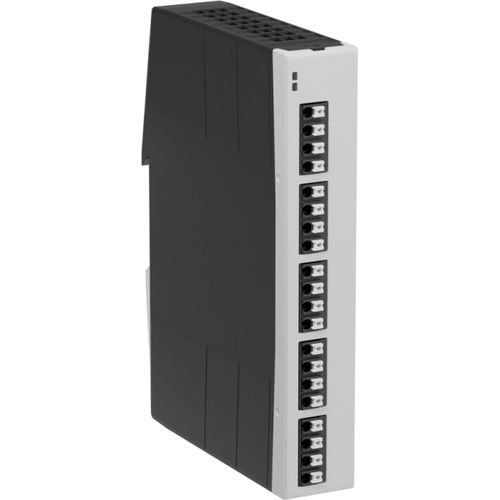

Compact enclosure KV 4600 series

for DIN railmodularplastic

Electronic enclosure KV 4600 Ready for the future - the electronic enclosure KV 4600 sets new standards in terms of modularity and functionality. All functions are integrated into the enclosure front, thus offering a high degree of flexibility for your electronics. The multifunctional, modular enclosure system with overall widths of 12.5 / 17.5 / 22.5 mm and further are particularly suitable for modern control and industrial IoT applications as well as a number of further applications - also applicable as single enclosure and stand-alone solution. Reduce your installation effort - with just a few enclosure components to the finished device. Increase your degree of automation - the push-in terminals meet the high requirements of the reflow soldering process. Individuality - customer-specific adaptations can be realized in a simple and cost-effective way. Highlights: - Module widths from 12.5 mm and different installation depths available - Usage of up to two circuit boards per enclosure width - High signal density due to the use of compact push-in terminals - Light conductor concept - high display density with minimum space requirements - Common bus concepts can be integrated into the bottom assembly - Optionally sealable, tiltable front cover (manipulation protection) - Optional mounting rail bus system (In-Rail-Bus) - Easy and cost-effective realization of customer-specific adaptations Customer benefits: - Full functionality at the enclosure front - PCB surface up to 9500 mm² allows multiple applications and a cost-effective design - Quick installation by simplified enclosure design - High mechanical stability and vibration resistance
