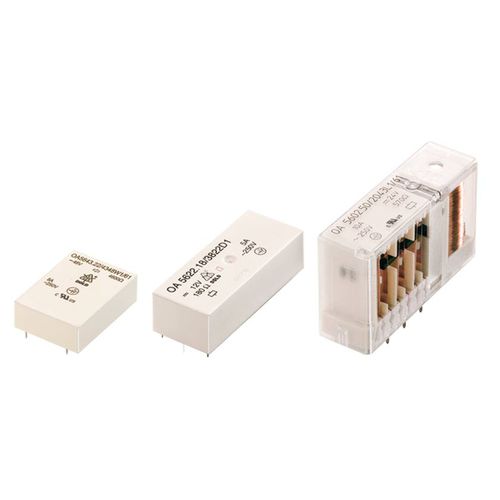

Electromechanical relay with guided contacts OA series
DCPCBmonostable

electromechanical relay with guided contacts
electromechanical relay with guided contacts
Add to favorites
Compare this product


Characteristics

Control voltage
DC
Mounting
PCB
Other characteristics
with guided contacts, monostable
Output current

Max.: 10 A

Min.: 5 A

Description

The Safety Relay is a type of PCB Relay manufactured by Dold suitable for use on printed circuits. These relays are equipped with a positive guided contact, with at least one closed and one open contact. The contacts are never closed together. If a normally open contact is soldered, the closed contact will not be closed when the supply voltage is shut off. The safety relay has a contact distance of 0.5mm. The device features a primary monitoring function to determine if there is a contact breakdown, ensuring long operating life. The relay is designed for fuel technology and railway applications. It also provides safety for operations involved in the machine- or plant-building sector.
