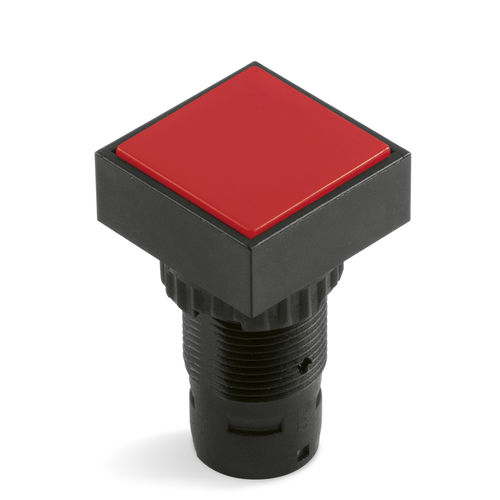

Touch push-button switch CD16 PS

IP40LED-illuminatedcontrol

Pushbutton with square head with custom labels and Faston connector. Opaque pushbutton, Illuminated pushbutton, or Pilot Light. Ø 16 mm BODY/CUT-OUT 24x24 mm SQUARE HEAD As an alternative to the standard protruding version (type A) CD16/24 PS is available flush mounting (type B) The pushbutton can get illuminated by being equipped with an integrated LED on the inside or a lamp socket with a LED Lamp T5.5. On request, you can have it just with the PILOT LIGHT functionality. On request we can screen print any words on the display, even with special characters. The Pushbutton CD16/24 PS can be equipped with a guard. Besides the frontal element, the Pushbutton CD16/24 PS needs a contact block to work, made up of a base and contact modules. Contacts can be open, closed, open-closed and a light element can be added. The Pushbutton can be a toggle type, or a push-for "on" or push-for "off" type. The Pushbutton CD16/24 PS can be mounted on DOMO's Control and Annunciator Panels. Available colors Red Green Yellow Blue White Black Technical features Connection Faston 2,8×0,5mm Type A protruding For control and annunciator panels LED consumption 15mA Protection degree IEC 60529 Working temperature -20°C +70°C Options on request B Type - Flush Mounting square (24x244mm cut) Cover Guard Integrated LED Pilot light
