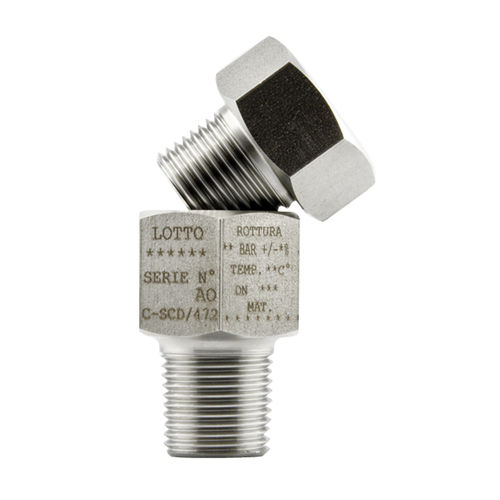

Angular seat rupture disc SU/Mstainless steelthreaded sealed unit
Add to favorites
Compare this product
Characteristics
- Type
- angular seat
- Material
- stainless steel
- Other characteristics
- threaded sealed unit
- Burst pressure
Max.: 1,150 bar
(16,679.34 psi)Min.: 20 bar
(290.08 psi)- Nominal diameter
Max.: 40 mm
(2 in)Min.: 3 mm
(0 in)
Description
DonadonSDD SU/M sealed units are formed by a threaded connector, formed by two pieces, containing a calibrated rupture disc. The rupture disc is inserted in the threaded and sealed container. These units have been designed to make small disc mounting in plants easy and reliable, to simplify handling without need of specialised personnel.
SU/M sealed units are suitable for use with gases and liquids in cycling and pulsating conditions. SU/M sealed units react to over-pressure in a few milliseconds and are recommended for protection of plants, plant equipment and containers.
Tolerance - from +/- 5 % to +/- 10%
Operating temperature - Up to 480 °C
Operating margin - 80%
Vacuum support - No
Fragmentation - Yes (Without fragmentation in special execution)
Use under valve - No
Corrosion resistance - Very good
Container - Included, direct mounting
PED Certification [CE STAMP] - Available
