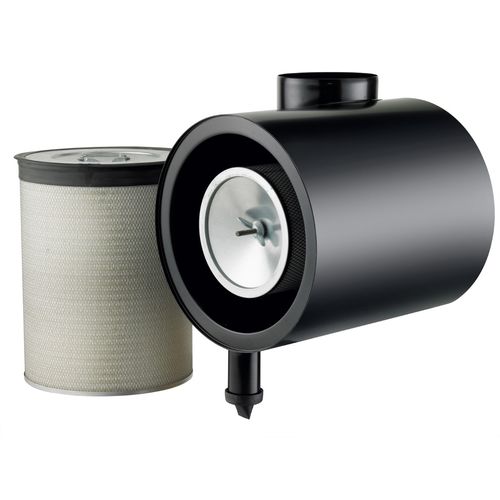

Cartridge filter housing FTG Cycloflow™ series

for airmetal

The FTG Cycloflow™ is a two-stage axial seal air cleaner that is typically used in large engines operating in medium to heavy dust conditions. Features Unique, flared inlet allows maximum airflow with low restriction 533.4 mm / 21 in. in body diameter Two-stage filter system — the first stage removes up to 85% of incoming dust with a tangential air inlet Inlet on side, outlet on end Already tapped to accept filter service indicator (1/8"-27 NPT MALE) Safety filter protects engine inlet during filter change out Vacuator™ Valve automatically releases the pre-cleaned dust Housing is metal and coated with a black, corrosion- and chemical-resistant polymer paint Mounting the unit directly to the engine is not recommended; excessive engine vibration can cause premature air cleaner structural failure Benefits Durable housing withstands rugged conditions Built-in pre-cleaner eliminates need for external pre-cleaner in most applications Applications Allows 32-59 m³/min / 1,130 to 2,083.6 cfm airflow throughput per air cleaner Horizontal installation Sustained temperature tolerance: to 82° C / 179.6° F Large industrial and construction equipment: crawler tractors, crane loaders, excavators and air compressors with large engines operating in severe dust environments Agricultural machinery Mining equipment Oil and gas hydraulic fracturing (fracking) equipment Off-highway vehicles
