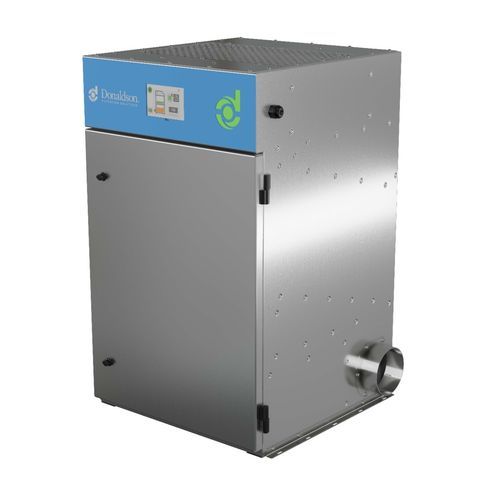

Oil mist collector Stratos™

smokeaerosolfiltration media

Overview
The Stratos™ Mist Collector was created to address fine mist and airborne contaminants with a continuous‑duty filtration solution designed to keep pace with modern production demands. Modern machining operations generate elevated levels of smaller mist particles and contaminants; the Stratos provides reliable continuous‑duty filtration in an efficient footprint and is available in multiple model sizes to meet a range of performance and volume requirements. Designed for global deployment, it supports contaminant collection across multiple industries.

Innovations designed for efficiency

• ControlFlow Inlet Technology to support effective collection and drainage and reduce pressure drop.
• Tilted filter alignment to aid drainage and lower pressure drop for improved fluid recapture.
• EC motors with built‑in VFD capability for precise airflow control, energy efficiency, flexible installation, long filter life, and quiet operation.

Reliable fluid management
Airflow design and tilted filter alignment help reduce pressure drop and support fluid recapture and recycling, enabling effective handling of water‑soluble fluids, oil lubricants, and thermally generated smoke from machining operations.

Filter technology built for long service life
Resin‑free Synteq™ XP panel filter media provides long filter life and low pressure drop. Multiple media options are available for water, oil, and smoke contaminants. Optional secondary filters are available (HEPA or DOP) for higher‑efficiency particulate capture.

Smart control for maximum uptime
The Pro OS Controller enables digital airflow control, system diagnostics, and programmable alerts. The 5-inch LCD touchscreen includes a multilingual display, filter‑life monitoring, and a visual performance indicator to simplify operation and maintenance planning.

Built for the grind
Available as a machine‑mounted or floor‑stand system, the Stratos provides filtration and emissions control for fugitive metalworking mist across multiple applications and industries.

Technical specifications

• Product family: Stratos™ Mist Collector
• Application: capture of metalworking mist (water‑soluble fluids, oil lubricants, thermal machining smoke)
• Filtration media: Synteq™ XP panel filter (resin‑free) with multiple media options
• Secondary filter options: HEPA or DOP (optional)
• Inlet technology: ControlFlow Inlet for pre‑separation and drainage
• Filter arrangement: tilted filter alignment to support drainage and reduced pressure drop
• Motor: EC motors with integrated VFD (variable frequency drive)
• Control: Pro OS Controller with 5-inch LCD touchscreen, multilingual UI, diagnostics, filter‑life monitoring, visual performance indicator
• Mounting options: machine‑mounted or floor‑stand
• Design intent: continuous‑duty operation with compact footprint; available in multiple model sizes to meet a range of flow and volume requirements
