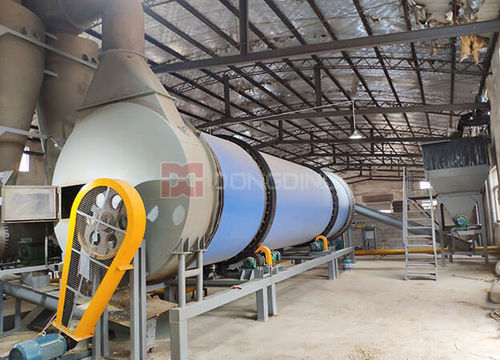

Hot air dryer DDSG series

cylindersawdustfertilizer

The biomass dryer can quickly dry the wet material with a moisture of 65% to a dried product with moisture less than 12%. It can be used for drying wood chips, sawdust, bark, straw, alfalfa hay, sugarcane bagasse, cassava residues, poultry manure, etc. And the final product can be applied in boiler combustion, gasification and power generation, animal feed, fertilizer, etc. We offer the whole biomass drying system including a heating machine, conveyor, feeding part, cylinder dryer, discharging part, and dust collector. We can also offer the full Drying and Pelleting Plant in order to make a one-stop solution for our customers. System Firstly, raw material is transported to the rotary drum dryer by the belt conveyor. Because of the inclination of drum dryer, material with hot air moves to the end of dryer body, during which process wet material gets fully contact with the hot air. After drying, most of the dry material is discharged through the belt conveyor. The left material mixed with dust continue goes into the cyclone dust collector and the bag dust collector in sequence, where the dust will be collected. Lastly, with the function of induced draft fan, the left material will discharged through the conveyor. AdvantageEmail us: [email protected] 1. Compared with the single-drum dryer, the length of this 3 pass rotary drum dryer is shortened by 50%, reducing the building area and saving about 40% project investment; 2. Multiple Heating Source. Customers can choose the heating source according their situation, we can design the customized solutions;
