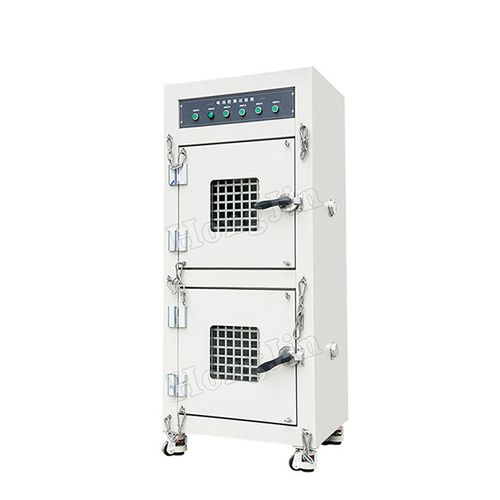

Temperature test chamber

for the aeronautical industryfor batteryelectronic equipment

This testing machine is mainly used for battery overcharge and overdischarge. During the charge and discharge test, the battery is placed in an explosion-proof box, and the external charge and discharge tester is connected to protect the operator and the instrument. The test box of the machine can be tested according to the test requirements. Made to order. 1. The size of each test box: 500*500*500mm (length*width*height); (can also be customized according to customer requirements) 2. Material: Outer box: 1.5mm thick A3 steel plate and treated with baking paint, inner box: SUS#201 thickness 1.2mm; 3. Single door, left open, the inner box door is made of stainless steel, and has silicone compression strips, and there is an observation window on the door; 4. The door is connected to the box by a strong hinge, and the door is locked with an explosion-proof cold handle; 5. Teflon tape is attached to the inside of the test box to effectively insulate and flame retardant, and it is easy to clean; 6. There is a circular wire port on the right side of each layer of the box, which is convenient for the test connection line to pass through; 7. There is a separate test panel to control the lighting and exhaust in each test room.
