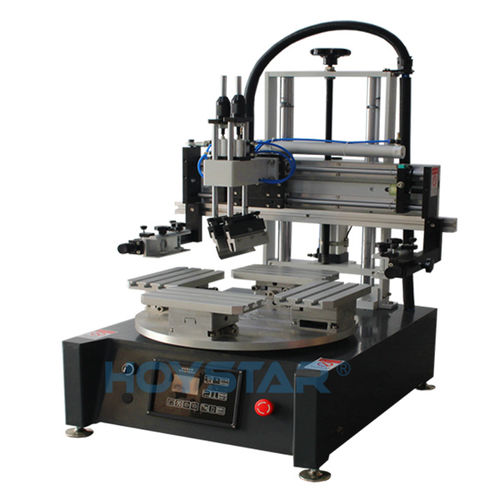

1 Color Rotary Desktop Screen Printing Machine For Wooden Toys, Lighter
Application:
This is tabletop screen printing machine, special design for high speed, high precision screen printing. It adopted Mechanical from cam separator TAIWAN to make rotary table. It can rotate quickly without shock. You can upload and download products when printing, that can be reduce the stop time of machine. The max printing speed can be up to 1500pcs/hr. It’s very suitable for big quantity screen printing.
Function:
1. SCM IC coordinate light touching panel to complile action programming
2. Auto 4-digit counter built-in, counting printing quantity
3. Airframe adopts coin alloy,and metal coating surface
4. distyle vertical constructure, high precision, steady operation
5. the transeversa stroke can be adjusted, spacing by Taiwan electronic switch
6. the angle of scraper and ink covering blades can be adjusted randomly
7. installing scraper constant pressure equipment to make sure pressure is steady when printing
8. you can regulate work-table back and forth or right and left, and then fastening it
9. you can regulate screen frame back and forth, right and left or level orientatio
10. T-solt worktable, convenient to install mould
11. installing CEC oil buffer on up and down, left and righ to avoid printing shock
12. The machine is running fastly, steably and lower noise.
13. Action model option: fully automatic | semi-automatic | manual
14. Start-up method:panel | foot switches
15. scraper pressure controller:by pressure regulating Valve
parameter:
16. vertical driving style: pneumatic
17. transeversa driving style: pneumatic
18. max printing area: 200*300mm
