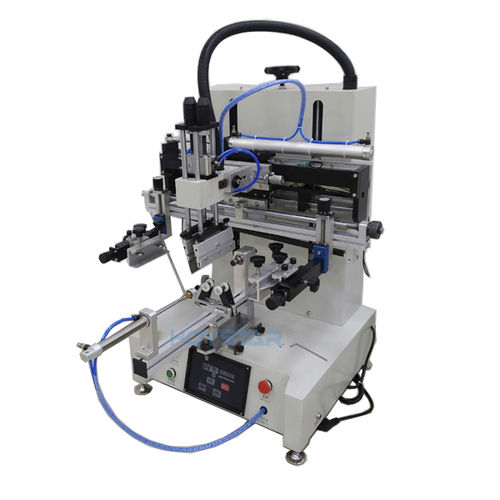

Monochrome screen printing machine GW-2030C
for the glass industryfor the plastics industryhigh-accuracy

monochrome screen printing machine
monochrome screen printing machine
monochrome screen printing machine
monochrome screen printing machine
monochrome screen printing machine
Add to favorites
Compare this product


Number of colors
for the glass industry, for the plastics industry
Other characteristics
high-accuracy, high-speed, semi-automatic, desktop
Printing speed

Max.: 1,200 p/h


Application: It is suitable for printing products which surface is round,such as Bottles, pens, glass cups etc Print area: 5~95mm diameter Print speed: 800PCS/hr Specification: 1. Micro-computer controlling, high degree of automation, easy and convenient operation 2. Auto 4-digit counters built-in 3. It can print round and cone products 4. In order to meet kinds of printing requirements, the printing stroke and speed can be adjusted 5. The worktable can be fine-tuning by up and down, or left and right, and flat oscillate angle, high precise printing, conveniently and quickly to adjust 6. Pneumatic printing controlling with adjustable pressure system 7. Stable and reliable function micro-computer controlling 8. Unaided printing and ink reclaiming speed controlled 9. With huffing function, can print soft products 10. Separate special mould for round and cone products 11. Action mode option: Fully-automatic semi-automatic manual 12. Start-up method: Panel pedal 13. Drive method: Pneumatic 14. Left and right drive method: Pneumatic 15. Vertical stroke: 125mm 16. Transverse stroke: 350mm 17. Max printing area: 300mm (the length of circumference or cambered surface)*200mm (width) 18. Printable diameter: 5~95mm 19. If printing whole circle, the maximum printing diameter is: 95mm 20. The maximum length of printed products: 250mm
