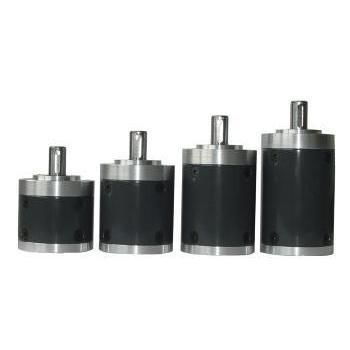

BLDC gear-motor RP52

planetarycoaxialsolid-shaft

Product Overview
RP52 is a 52 mm planetary gear motor / gearbox by KWC Motor. It features ball-bearing-supported output, a 12 mm standard output shaft, and gearbox ratios covering approximately 1:3.6 to 1:307. Rated torque reaches 30 N·m with a 90 N·m short-term peak. Designed for integration in mobile platforms and industrial equipment requiring compact, high-ratio mechanical reduction.

Key Facts for Engineering Buyers

• Product category: Planetary Gear Motors & Gearboxes
• Model: RP52
• Brand / manufacturer: KWC Motor, Dongguan KWC Machinery Co., Ltd.
• Typical applications: AGV/AMR wheel drives, mobile chassis, winches, solar trackers, construction actuators

Specification Signals

• Diameter (housing): 52 mm
• Output shaft: 12 mm (keyway / D-shaft options available)
• Bearings: ball bearings supporting radial and axial loads

Core Applications & Solutions

• Heavy-duty AGVs & Mobile Chassis: Suitable for warehouse logistics AGVs, AMRs and service-robot chassis. Provides up to 30 N·m continuous torque and a 12 mm output shaft able to drive hub/wheel systems for high payloads.
• Industrial Winches & Engineering Equipment: Applicable to off-road winches, PV trackers and construction actuators. Ball-bearing output supports radial loads up to 300 N and axial thrust up to 200 N for outdoor duty cycles.

RP52 Gearbox Technical Specifications
Ratio | Stages | Length L (mm) | Rated Torque | Max Momentary Torque | Efficiency
1/3.6 ~ 1/5.33 | 1 | 45.7 ±0.5 | 3 N·m | 9 N·m | 90%
1/13 ~ 1/28 | 2 | 57.2 ±0.5 | 12 N·m | 36 N·m | 81%
1/43 ~ 1/121 | 3 | 68.5 ±0.5 | 24 N·m | 72 N·m | 73%
1/154 ~ 1/307 | 4 | 79.8 ±0.5 | 30 N·m | 90 N·m | 66%

Mechanical Parameters

• Gearbox outer diameter: 52 mm
• Shaft diameter: 12 mm (standard; keyway/D-shaft customizable)
• Output shaft supported by ball bearings
• Maximum radial load: 300 N
• Maximum axial load: 200 N
• Maximum press-in force: 300 N

Customization and Sourcing Notes
KWC Motor supports OEM/ODM customization for voltage, speed, torque, shaft design, connector/cable options, gearbox integration and control requirements. Final pricing and specifications are confirmed after application data, quantities and customization details are defined.

Why Choose the KWC RP52?

• High rated and peak torque: Rated up to 30 N·m with 90 N·m short-term peak for shock events.
• Significant radial and axial support: Ball-bearing configuration supports radial loads up to 300 N and axial thrust to 200 N.
• Flexible shaft and motor matching: Standard 12 mm shaft with options for keyway, D-shaft or splines; compatible with 50 mm motor families or higher-power BLDC motors.
• Customization for environment and integration: Sealing and IP upgrades, encoder and connector options available on request.

Purchasing FAQ (selected)

• Q: How does RP52 compare with RP48? A: RP52 increases radial load capacity (200 N → 300 N), axial load (100 N → 200 N), rated torque (20 N·m → 30 N·m) and momentary shock torque (60 N·m → 90 N·m).
• Q: What is the output shaft diameter and keyway availability? A: Standard 12 mm solid shaft. Keyway, D-shaft or custom machining available per drawing for higher transmitted torque.
• Q: Is RP52 suitable for AGV platforms? A: Yes. 300 N radial capacity and 90 N·m peak torque make it suitable for heavy AGV wheel loads and impact events.

Characteristics / Technical specifications

• Model: RP52
• Housing diameter: 52 mm
• Reduction ranges: ~1/3.6 to ~1/307 depending on stages
• Typical lengths L: 45.7 ±0.5 mm (1 stage), 57.2 ±0.5 mm (2 stages), 68.5 ±0.5 mm (3 stages), 79.8 ±0.5 mm (4 stages)
• Rated torque examples: 3 N·m / 12 N·m / 24 N·m / 30 N·m (by stage)
• Max momentary torque examples: 9 N·m / 36 N·m / 72 N·m / 90 N·m
• Efficiency range: 66%–90% depending on ratio and stages
• Standard output shaft: 12 mm (options: keyway, spline, D-shaft)
• Bearings: ball bearings
• Max radial load: 300 N
• Max axial load: 200 N
• Max press-in force: 300 N
