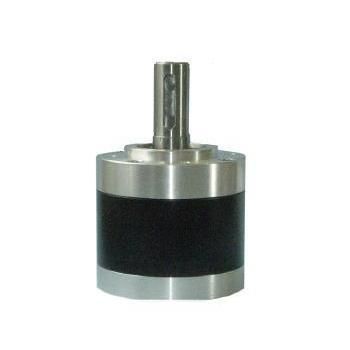

Planetary gear-motor RP80

coaxialkeyed shaft50 - 100 Nm

Product Overview
RP80 is a planetary gear motor / gearbox with an 80 mm outer diameter, standard 19 mm keyed output shaft and industrial ball bearings. It provides reduction ratios from 1:3.55 up to 1:138 and rated torque up to 80 N·m (120 N·m short-term). The design supports high radial and axial loads for heavy-duty industrial automation and outdoor applications.

Key Facts for Engineering Buyers

• Product category: Planetary Gear Motor / Gearbox
• Model: RP80
• Brand / manufacturer: KWC Motor, Dongguan KWC Machinery Co., Ltd.
• Outer diameter: 80 mm
• Output shaft: 19 mm with 6 mm keyway
• Typical applications: Heavy-duty automation, winches, solar trackers, wind turbine pitch drives, stage lifts, industrial mixers

Core Applications & Solutions

• Solar tracking & energy systems: Suited to large solar trackers and wind-turbine pitch control; available all-metal sealing options for outdoor reliability and momentary torque up to 120 N·m for wind/shock events.
• Industrial winches & heavy equipment: 19 mm heavy output shaft and 600 N radial capacity enable direct drum mounting in many cases (external support bearing recommended depending on drum size and application).

Technical Specifications
Gear Ratio | Stages | Length L (mm) | Rated Torque | Max Momentary Torque | Efficiency
1/3.55 ~ 1/6.60 | 1 | 55.7 ±0.8 | 8 N·m | 12 N·m | 90%
1/13 ~ 1/23 | 2 | 72.2 ±0.8 | 30 N·m | 45 N·m | 81%
1/26 ~ 1/37 | 3 | 72.2 ±0.8 | 60 N·m | 90 N·m | 81%
1/50 ~ 1/138 | 4 | 88.5 ±0.8 | 80 N·m | 120 N·m | 73%

Customization and Sourcing Notes
KWC Motor supports OEM/ODM customization including voltage, speed, torque, shaft variants (dual outputs, splines, special flanges), cable/connector options, encoder or control integration, and noise/EMC targets. Final specification and pricing require confirmation of application details, operating conditions, quantities and customization scope.

Features / Technical Details

• Gearbox outer diameter: 80 mm
• Shaft diameter: 19 mm (6 mm keyway)
• Output shaft bearings: Industrial ball bearings
• Max radial load: 600 N
• Max axial load: 200 N
• Max press-in/compressive force (shaft system): 1000 N
• Rated torque (by stage): 8 / 30 / 60 / 80 N·m
• Momentary/peak torque (by stage): 12 / 45 / 90 / 120 N·m
• Efficiency by stage: ~90% (1-stage), ~81% (2-3 stage), ~73% (4-stage)
• Mechanical precision: radial clearance controlled ≤ 0.08 mm
• Mounting/interface: standard 80 mm motor mounting patterns; optional shaft and flange variants
• Protection options: optional dust/water sealing for outdoor use
