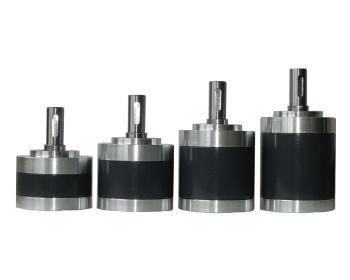

Brushless gear-motor RP62

brushedplanetarycoaxial

Product Overview
KWC Motor RP62 is a 62 mm-class planetary gear motor / gearbox engineered for applications requiring high shaft rigidity and elevated axial load capacity. Standard configuration features a 14 mm output shaft supported by ball bearings, axial load up to 200 N and multiple reduction options across 1–4 stages. Rated torque reaches 30 N·m (momentary up to 90 N·m) for the 4-stage variant.

Key Facts for Engineering Buyers

• Product category: Planetary Gear Motors & Gearboxes
• Model: RP62
• Brand / manufacturer: KWC Motor (Dongguan KWC Machinery Co., Ltd.)
• Typical mechanical highlights: 62 mm gearbox diameter, 14 mm heavy output shaft with ball bearings, axial load 200 N, radial load 300 N

Core Applications & Solutions

• Lead Screw Lifting & Linear Actuators: 14 mm heavy shaft and 200 N axial capacity allow direct coupling to ball screws and linear actuators for standing desks, lift/pushrod systems and positioning stages while maintaining alignment under push/pull loads.
• Industrial Mixing & Large Gates: Suited to mixers, process valves and large rotating or sliding gates where shaft rigidity and momentary shock resistance (up to 90 N·m) mitigate fluctuating torque or wind/shock loads.

RP62 Gearbox Technical Specifications
Data source: KWC RP62 datasheet. Standard: 14 mm output shaft with ball bearings.
Gear ratio (example ranges) | Stages | Length L (mm) | Rated torque | Max momentary torque | Efficiency
1/3.6 ~ 1/5.33 | 1 | 37.8 ±0.5 | 3 N·m | 9 N·m | 90%
1/13 ~ 1/28 | 2 | 49.5 ±0.5 | 12 N·m | 36 N·m | 81%
1/43 ~ 1/121 | 3 | 60.8 ±0.5 | 24 N·m | 72 N·m | 73%
1/154 ~ 1/307 | 4 | 71.9 ±0.5 | 30 N·m | 90 N·m | 66%

Additional Mechanical Parameters

• Gearbox outer diameter: 62 mm
• Output shaft diameter: 14 mm (standard heavy-shaft)
• Output shaft support: ball bearings
• Maximum radial load: 300 N
• Maximum axial load: 200 N
• Rated torque (series): up to 30 N·m; momentary shock torque up to 90 N·m

Customization and Quality Notes

• OEM/ODM options: voltage, speed, torque, shaft design (keyway, threaded hole, stepped shaft), cable/connector, gearbox integration, control targets, noise/EMC requirements, optional stainless-steel shaft for corrosive environments.
• Motor compatibility: typically combined with 60 mm or larger brushed/brushless motors depending on power and mounting.
• Quality controls: press-in verification (shaft assembly supports up to 300 N press-in force) and 100% outgoing inspection for noise, current and backlash.

Features / Technical Specifications

• Model: RP62
• Brand: KWC Motor
• Gearbox diameter: 62 mm
• Output shaft: 14 mm heavy-shaft with ball bearings
• Axial load capacity: up to 200 N
• Radial load capacity: up to 300 N
• Rated torque by stages: 3 N·m (1-stage), 12 N·m (2-stage), 24 N·m (3-stage), 30 N·m (4-stage)
• Momentary torque by stages: 9 N·m, 36 N·m, 72 N·m, 90 N·m
• Efficiency by stage: approx. 90%, 81%, 73%, 66%
• Available ratio ranges: 1:3.6–1:5.33, 1:13–1:28, 1:43–1:121, 1:154–1:307
• Length L (typical): 37.8 ±0.5 mm (1-stage) to 71.9 ±0.5 mm (4-stage)
