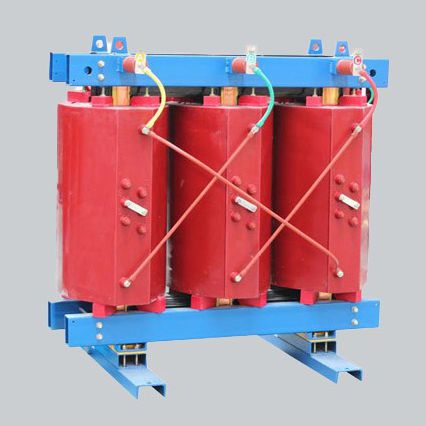

Distribution transformer SC(B) seriesdryfor indoor servicecompact

distribution transformer
distribution transformer
Add to favorites
Compare this product
indicative price

Characteristics

Type
distribution
Configuration
dry
Applications
for indoor service
Other characteristics
compact, epoxy resin, three-phase

Description

SCB10 30~2500kVA three phase dry type epoxy distribution power transformer SC(B)10, SC(B)11, SC(B)13 are the typical dry epoxy distribution power transformer, they are fireproof, compact and mainly designed for indoor use, and can be directly installed in the load center. Application SC(B) Series DRY EPOXY RESIN DISTRIBUTION POWER TRANSFORMER is widely applied in hotels, high buildings, business centers, residence community, gymnasium, Petrochemical plant, airport, harbor, metro, mine, drilling platform, etc. Benefits 1. Low noisy 2. Low partial discharge 3. High mechanical strength and strong short circuit resistance ability; 4. Strong impact resistance Technical specification Standard: GB1094.11-2007 GB/T10228-2008 IEC60726 Capacity:50~2500KVA Voltage: 10KV, 35KV Tapping range: ±2x2.5% or ±5% Voltage regulating: No excitation or on load voltage regulation Frequency: 50Hz or 60Hz Connection: Dyn11 or Yyn0 Insulation level: LI75AC35/AC5 Partial discharge: ≤10PC Insulation grade: F Max temperature rise: 100K Cooling way: AN or AF Protection class: IP00, IP20(indoor), IP23(outdoor) Working Environment: ambient temperature ≤40℃,altitude≤1000M(Please contact us if the installation is beyond the normal use)
