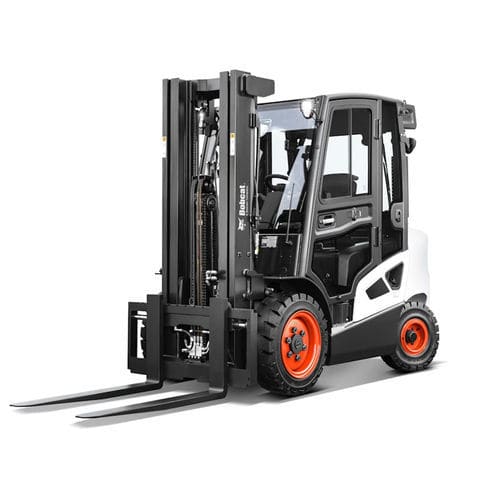

Diesel forklift D series
ride-onhandlingprecision

Diesel forklift - D series - Doosan Industrial Vehicles - ride-on / handling / precision
Diesel forklift - D series - Doosan Industrial Vehicles - ride-on / handling / precision
Diesel forklift - D series - Doosan Industrial Vehicles - ride-on / handling / precision - image - 2
Diesel forklift - D series - Doosan Industrial Vehicles - ride-on / handling / precision - image - 3
Diesel forklift - D series - Doosan Industrial Vehicles - ride-on / handling / precision - image - 4
Diesel forklift - D series - Doosan Industrial Vehicles - ride-on / handling / precision - image - 5
Diesel forklift - D series - Doosan Industrial Vehicles - ride-on / handling / precision - image - 6
Diesel forklift - D series - Doosan Industrial Vehicles - ride-on / handling / precision - image - 7
Diesel forklift - D series - Doosan Industrial Vehicles - ride-on / handling / precision - image - 8
Diesel forklift - D series - Doosan Industrial Vehicles - ride-on / handling / precision - image - 9
Add to favorites
Compare this product

Characteristics

Motor type
diesel
Operator
ride-on
Applications
handling, precision
Other characteristics
compact
Carrying capacity

2 t, 2.5 t, 3 t, 3.3 t, 3.5 t
(2.2 us ton, 2.8 us ton, 3.3 us ton, 3.6 us ton, 3.9 us ton)

Lifting height

Min.: 2,030 mm
(79.92 in)

Max.: 8,250 mm
(324.8 in)

Overall width

1,170 mm, 1,197 mm, 1,255 mm
(46.1 in, 47.1 in, 49.4 in)

Overall length

3,624 mm, 3,674 mm, 3,779 mm, 3,798 mm, 3,828 mm
(142.7 in, 144.6 in, 148.8 in, 149.5 in, 150.7 in)

Load center distance

500 mm
(19.7 in)

Weight without load

3,995 kg
(8,807.5 lb)

Axle loading with maximum load front

5,700 kg
(12,566.3 lb)

Axle loading with maximum load rear

790 kg
(1,741.7 lb)

Axle loading without load front

1,630 kg
(3,593.5 lb)

Axle loading without load rear

2,365 kg
(5,213.9 lb)

Track width front

975 mm
(38.4 in)

Track width rear

990 mm
(39 in)

Height of mast when lowered

2,190 mm
(86.2 in)

Overall height with mast raised

4,235 mm
(166.7 in)

Height to top of overhead guard

2,180 mm
(85.8 in)

Seat height

1,026 mm
(40.4 in)

Tow couplig height

315 mm
(12.4 in)

Length to fork face

2,700 mm
(106.3 in)

Fork carriage width

1,050 mm
(41.3 in)

Ground clearance under mast with load

130 mm
(5.1 in)

Ground clearance at center of wheelbase with load

145 mm
(5.7 in)

Turning circle radius

2,270 mm
(89.4 in)

Minimum distance between centres of rotation

685 mm
(27 in)

Travel speed

20 km/h
(12.4 mph)

Lifting speed

0.51 m/s, 0.56 m/s, 0.61 m/s, 0.65 m/s
(1.673 ft/s, 1.837 ft/s, 2.001 ft/s, 2.133 ft/s)

Lowering speed

0.51 m/s
(1.673 ft/s)

Rated drawbar pull

19,900 N

Gradeability

28.7 %

Min.: 22.3 %

Max.: 63.5 %

Rated output

45.6 kW
(62 hp)

Rated speed

2,300 rad.min-1
(366.1 rpm)

Cubic capacity

58 l
(15.3 gal)

Maximum operating pressure

156 bar
(2,262.6 psi)

Oil flow

76.5 l/min
(20.2 us gal/min)

Noise level

75 dB

Description

Bobcat 2–3.5t diesel forklifts offer high performance and excellent fuel efficiency. All premium 9-Series forklifts combine the simplicity of operating a Bobcat forklift with the highest safety standards, superior ergonomics for unmatched operator comfort, and fully customisable, ergonomic controls to ensure maximum productivity. Smart Power. Easy Lifts. See more and stay productive with enhanced mast visibility and auto tilt leveling. When power meets precision, every lift feels easy, shift after shift. Comfort That Lasts Quiet, spacious cab with your choice of fingertip controls or levers. Configure it your way and stay focused all day—the Bobcat way. Built for Productivity Watch how 9-Series diesel forklifts simplify daily tasks with clear sightlines, smooth tilt and dependable power. Ergonomics Spacious Leg Room The knee clearance is widened, and the tilt cylinder is removed from the floor plate, giving plenty of legroom. Adjustable Steering Column The telescopic steering column can be adjusted depending on the operator’s driving posture, takes up less space, and makes it easy for the operator to get in and out of the truck. The compact steering wheel makes driving the forklift more comfortable. Low Noise Level The low noise level of 75 dB allows the operator to concentrate better and hear more surrounding noise. Instrument Panel 5-inch is standard; 7-inch is optional. The bright and clear panel is very visible outdoors and keeps the operator informed about the condition of the machine. Productivity Multi Torque Mode Bobcat offers three performance engine maps.
