Diesel forklift D series
ride-onhandlingheavy-duty

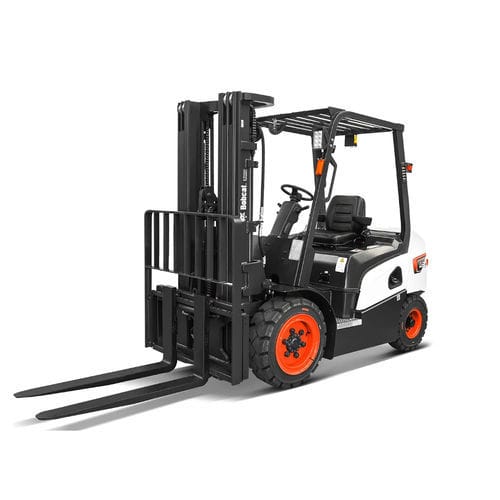

Diesel forklift - D series - Doosan Industrial Vehicles - ride-on / handling / heavy-duty
Diesel forklift - D series - Doosan Industrial Vehicles - ride-on / handling / heavy-duty
Diesel forklift - D series - Doosan Industrial Vehicles - ride-on / handling / heavy-duty - image - 2
Diesel forklift - D series - Doosan Industrial Vehicles - ride-on / handling / heavy-duty - image - 3
Diesel forklift - D series - Doosan Industrial Vehicles - ride-on / handling / heavy-duty - image - 4
Diesel forklift - D series - Doosan Industrial Vehicles - ride-on / handling / heavy-duty - image - 5
Diesel forklift - D series - Doosan Industrial Vehicles - ride-on / handling / heavy-duty - image - 6
Diesel forklift - D series - Doosan Industrial Vehicles - ride-on / handling / heavy-duty - image - 7
Diesel forklift - D series - Doosan Industrial Vehicles - ride-on / handling / heavy-duty - image - 8
Add to favorites
Compare this product

Characteristics

Motor type
diesel
Operator
ride-on
Applications
handling
Other characteristics
heavy-duty
Carrying capacity

3.5 t
(3.9 us ton)

Lifting height

Max.: 7,060 mm
(277.95 in)

Min.: 3,000 mm
(118.11 in)

Overall width

1,290 mm
(50.8 in)

Overall length

3,610 mm, 3,660 mm, 3,715 mm, 3,780 mm, 3,800 mm
(142.1 in, 144.1 in, 146.3 in, 148.8 in, 149.6 in)

Load center distance

500 mm
(19.7 in)

Weight without load

3,670 kg, 3,950 kg, 4,420 kg, 4,620 kg, 4,750 kg
(8,091 lb, 8,708.3 lb, 9,744.4 lb, 10,185.4 lb, 10,472 lb)

Axle loading with maximum load front

4,940 kg, 5,580 kg, 6,500 kg, 6,950 kg, 7,250 kg
(10,890.8 lb, 12,301.8 lb, 14,330 lb, 15,322.1 lb, 15,983.5 lb)

Axle loading with maximum load rear

730 kg, 870 kg, 920 kg, 970 kg, 1,000 kg
(1,609.4 lb, 1,918 lb, 2,028.3 lb, 2,138.5 lb, 2,204.6 lb)

Axle loading without load front

1,670 kg, 1,720 kg, 1,730 kg, 1,740 kg, 1,800 kg
(3,681.7 lb, 3,792 lb, 3,814 lb, 3,836 lb, 3,968.3 lb)

Axle loading without load rear

1,950 kg, 2,220 kg, 2,620 kg, 2,880 kg, 3,080 kg
(4,299 lb, 4,894.3 lb, 5,776.1 lb, 6,349.3 lb, 6,790.2 lb)

Track width front

1,060 mm
(41.7 in)

Track width rear

980 mm
(38.6 in)

Height of mast when lowered

2,045 mm
(80.5 in)

Free lift

150 mm
(5.9 in)

Overall height with mast raised

4,247 mm, 4,252 mm
(167.2 in, 167.4 in)

Height to top of overhead guard

2,160 mm
(85 in)

Seat height

1,185 mm
(46.7 in)

Length to fork face

2,560 mm, 2,610 mm, 2,665 mm, 2,730 mm, 2,750 mm
(100.8 in, 102.8 in, 104.9 in, 107.5 in, 108.3 in)

Fork carriage width

1,042 mm
(41 in)

Ground clearance under mast with load

132 mm
(5.2 in)

Ground clearance at center of wheelbase with load

135 mm
(5.3 in)

Turning circle radius

2,280 mm, 2,330 mm, 2,415 mm, 2,460 mm, 2,480 mm
(89.8 in, 91.7 in, 95.1 in, 96.9 in, 97.6 in)

Travel speed

18.5 km/h
(11.5 mph)

Lifting speed

4.2 m/s, 4.5 m/s, 5.2 m/s, 5.5 m/s
(13.78 ft/s, 14.764 ft/s, 17.06 ft/s, 18.045 ft/s)

Lowering speed

4.2 m/s, 4.7 m/s, 5 m/s, 5.5 m/s
(13.78 ft/s, 15.42 ft/s, 16.404 ft/s, 18.045 ft/s)

Rated drawbar pull

17,300 N, 17,500 N, 17,700 N

Gradeability

Max.: 50 %

Min.: 22 %

Rated output

42.6 kW
(57.9 hp)

Rated speed

2,400 rad.min-1
(382 rpm)

Cubic capacity

70 l
(18.5 gal)

Maximum operating pressure

160 bar
(2,320.6 psi)

Oil flow

65 l/min
(17.2 us gal/min)

Noise level

85 dB

Description

The 2–3.5t NX Plus Series diesel forklifts represent an outstanding value proposition with many safety and productivity technologies from our high-tier products included, all in a package that's easy to operate and maintain. Value That Works Hard Upgraded gear pump and mast valve boost speed and efficiency. Auxiliary weight lowers the center of gravity for bigger lifts, and improved gradeability keeps you moving. Built for Tight Aisles Turn tight with a small radius, see more with a panoramic mirror, and drive safer with a 40 mm lower cowl for better all-round visibility. Ready for Dust and Heat Systems are protected with an anti-dust design, pre-cleaner and double filter. Belly plate, vented panels, engine guard and heavy-duty cooling keep performance steady in harsh conditions. Ergonomics Spacious Leg Room The knee clearance is widened, and the tilt cylinder is removed from the floor plate, giving plenty of legroom. Adjustable Steering Column The steering column can be adjusted over a wide range of angles, allowing an optimal posture for the operator. Integrated Lamp Switch The turn signal and headlamp switches are integrated for convenient operation. Spacious Legroom The knee clearance is widened, and the tilt cylinder is removed from the floor plate. Acceleration, brake pedal clearance, and angle are improved to reduce ankle fatigue. Productivity High Speed Lifting/Lowering The gear pump and mast regulator valve are optimized to increase the lifting and lowering speed, which boosts the efficiency of your forklift.
