Water washing machine GCW-1

sprayautomaticfor the food industry

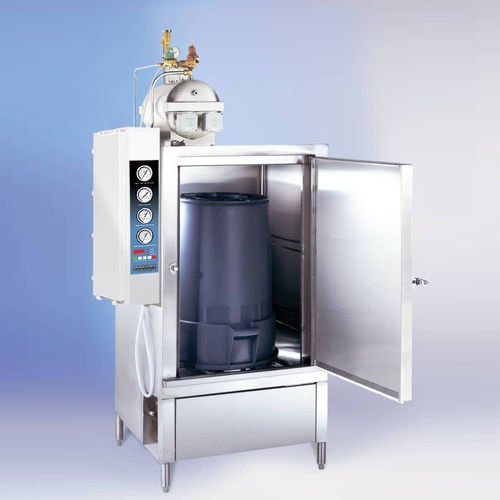

The Douglas Machines' Model GCW-1 drum washer is designed to clean the inside and rinse the outside of open ended garbage cans and refuse containers up to 24" in diameter and 36" tall. This machine features a rugged hinged door design, heavy duty 2 H.P. pump and a push button control center with adjustable cycle times. For containers with heavy food grade soils where sanitizing is desired, consider the Douglas Machines' Model BDW-1-HD. FEATURES • Rugged Stainless Steel Construction • Front Loading, Hinged Door Design • Powerful 2 H.P. Wash Pump • High Efficiency Motor • Recirculating Detergent Wash Tank • Separate Fresh Water, Sanitizing Rinse Tank • Automatic Water Level Controls • Pre-Programmed Digital Control and Information Center • Processes Up to 10 Batches an Hour • Wash & Rinse Temperature and Pressure Gauges • Self-Contained Water Heating • External Rinse Hose and Spray Gun • Easy to Clean Filtration System • Rotating Wash Arm Fitted with V Jets to Cut and Remove Stubborn Soils • One Year Warranty Program The GCW-1 is a hinged door, front loading, batch washer that is designed to clean the inside and rinse the outside of open ended containers up to 24" in diameter by 36" tall. The machine features two stainless steel tanks that can be heated with electric, gas or steam booster heaters. One tank is used to recirculate detergent wash water and the other is for dispensing fresh rinse water. Wash times are pre-programmed at 4, 6 or 8 minutes. Regardless of the wash cycle duration there is a 30 second sanitizing rinse cycle and a 60 second steam exhaust cycle. Using the short wash cycle, the machine can process up to 10 batches an hour.
