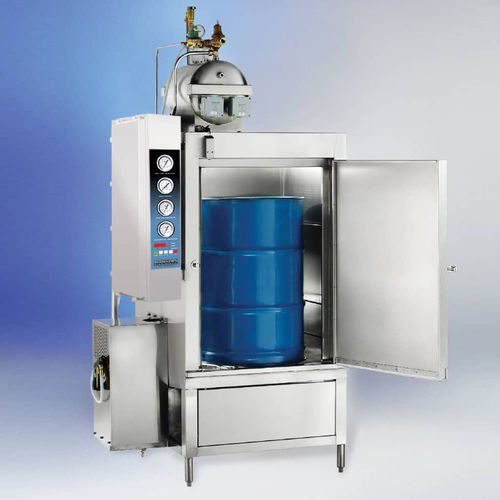

Water washing machine BDW-1-HD

sprayautomaticfor the food industry

The Douglas Machines' Model BDW-1-HD barrel washer is designed to wash and sanitize food soils from barrels, drums, and other reusable containers up to 26" in diameter by 38" tall. This powerfully efficient machine features a rugged hinged door design, a heavy-duty 7-1/2 H.P. pump, and a push button control and information center. This machine is also available with an optional protruding spray nozzle for bunged-hole barrels. EATURES • Rugged Stainless Steel Construction • Front Loading, Hinged Door Design • Powerful 7.5 H.P. Wash Pump • High Efficiency Motor • Recirculating Detergent Wash Tank • Separate Fresh Water, Sanitizing Rinse Tank • Automatic Water Level Controls • Pre-Programmed Digital Control and Information Center • Processes Up to 10 Batches an Hour • Wash & Rinse Temperature and Pressure Gauges • Self-Contained Water Heating • Standard and Custom Wash Racks • External Rinse Hose and Spray Gun • Easy to Clean Filtration System • Rotating Wash Arms Fitted with V Jets to Cut and Remove Stubborn Soils • One Year Warranty Program The BDW-1-HD is a hinged door, front loading, batch washer that is designed to wash and sanitize food soils from barrels, drums and other reusable containers up to 25-1 /2" diameter by 38" tall. It is also suitable for many industrial applications and is available with an optional protruding spray nozzle and positioning rack for processing bunged hole barrels. The machine features two stainless steel tanks that can be heated with electric, gas or steam booster heaters. One tank is used to recirculate detergent wash water and the other is for dispensing sanitizing rinse water. Wash times are pre-programmed at 4,6 or 8 minutes.
