Force indicator EasyView™

processanalogpanel-mount

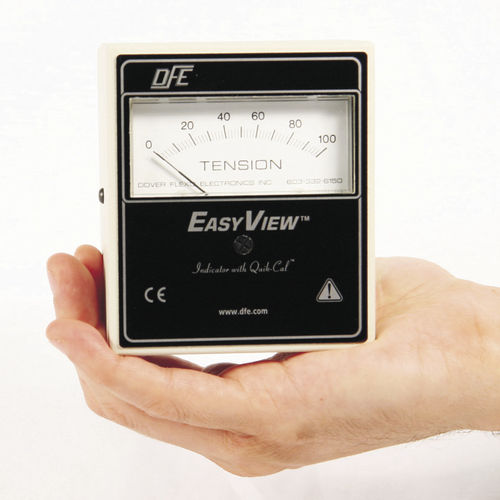

The EasyView™ Tension Indicator is a small, general-purpose device for the measurement and display of process web tension. Using Quik-Cal™ digital technology, the unit is zeroed and calibrated simply using push buttons. Models Ti25 In addition to amplifying the signal output from tension transducers installed in the web path and displaying actual tension on a 2.5 inch analog meter, the EasyView Tension Indicator powers the tension transducer (or transducer pair) and provides an additional isolated 0-to-10Vdc signal output proportional to tension for a drive, controller or PLC. For mounting on a wall or machine frame, the EasyView Tension Indicator is available in a compact, steel, full enclosure (E). As an alternate configuration there is an open, flat Panel (P) version for mounting into a cutout on an OEM operator panel or cabinet. Electrical connections are made at a closed terminal strip accessed via conduit through a 7/8 inch hole in the enclosure bottom. Integrated electrical isolation, package options, ease-of-installation, ease-of-viewing, and low cost make the EasyView indicator a popular choice for web tension monitoring or control applications. EasyView operates on 24Vdc, power supplied separately. EasyView indicators are designed to conform to CE and UL regulations: EN61010 requirements for Safety, EN61326 requirements for EMI, and UL61010 for safety. FEATURES • Small unit-measures just 3.5 inches x 4 inches x 3.5 inches • Uses Quick-Cal™ push-button Zero and Calibration. This eliminates potentiometer adjustments to make calibrating simple and fast. • Large 2.5 inch tension readout, analog or digital • Rugged Steel Enclosure
