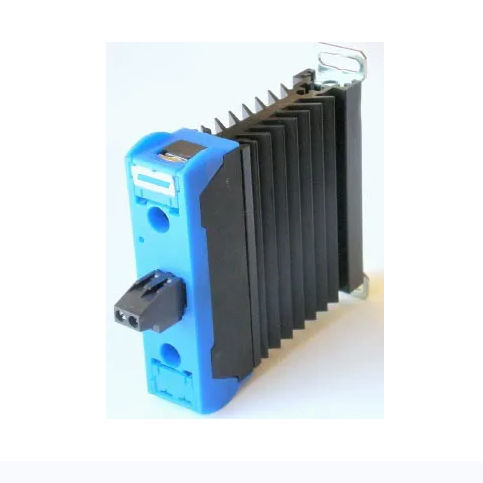

AC solid state relay RU965460WF1DIN rail
Add to favorites
Compare this product
Characteristics
- Control voltage
- AC
- Mounting
- DIN rail
- Switching current
50 A, 75 A
- Output voltage
Max.: 600 V
Min.: 24 V
Description
Zero-crossing solid state relay specially designed for resistive loads. (AC) 50A/75A with radiator rail, width 22.5mm
input: digital 0-12(3..32)VDC
isolated output 24 to 600 V AC 75 Amp.
High efficiency back to back thyristors at the output with TMS2 technology, long life
RU967460WF1 Solid State Relay (AC) 75A with radiator rail
