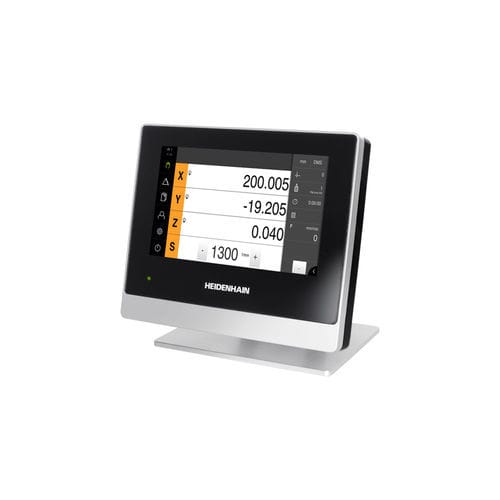

Graphic display ND 7000

800 x 4807"information

Digital readouts for milling machines, drilling machines, and lathes with up to three axes Reference-point acquisition, and tool table with tool data Positioning aids and block types in manual MDI mode Configurable OEM bar Tool radius compensation Switching functions for simple automated tasks Intuitive user interface The ND 7000 series provides many useful functions for machining with manually-operated machine tools. Self-explanatory operating elements and language-sensitive information in plain language permit context-sensitive operation. Simple execution of block types The ND 7000 helps you execute block types in MDI mode with a graphical positioning aid. Distance-to-go mode makes drilling and milling easier: after the next nominal position is entered, the display value simply moves toward zero during machining. Versatile mounting options These digital readouts feature a 50 mm x 50 mm hole pattern for simple and versatile mounting. They can be set up on a surface with the Multi-Pos or Single-Pos stand, or be fastened directly to the machine with the Multi-Pos holder or mounting frame. Comprehensive functionality Execution of machining patterns Probing functions for reference-point acquisition Cutting-data calculator and spindle-speed control Coupling of the axes in the top slide Taper calculator and constant cutting speed
