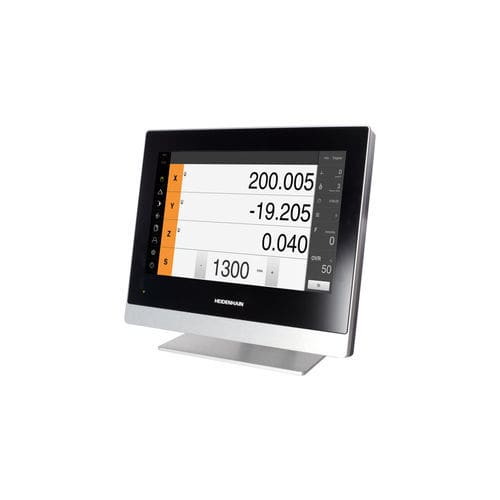

Touch screen display POSITIP 8000

1280 x 80012"information

Digital readouts for milling machines, drilling machines, and lathes with up to six axes Up to three NC-controlled axes Creation and execution of programs Reference-point acquisition, and tool table with tool data Positioning aids and block types in manual MDI mode Configurable OEM bar Switching functions for simple automated tasks Intuitive user interface The POSITIP 8000 series provides many useful functions for machining with manually-operated machine tools. Self-explanatory operating elements and language-sensitive information in plain language permit context-sensitive operation. Programs for recurring tasks Create, manage, and run programs for recurring workpieces directly on the POSITIP 8000: define a sequence of blocks with individual machining steps or patterns to form programs, and then run them. A software wizard guides you through the individual program steps. Versatile mounting options These digital readouts permit flexible and convenient mounting with the VESA MIS-D 100 standard. They can be set up on a surface with the Multi-Pos or Single-Pos stand, or be fastened directly to the machine with the Multi-Pos holder or mounting frame. Extensive extra functions Execution of machining patterns Probing functions for reference-point acquisition Cutting-data calculator and spindle-speed control Coupling of the axes in the top slide Taper calculator and constant cutting speed
