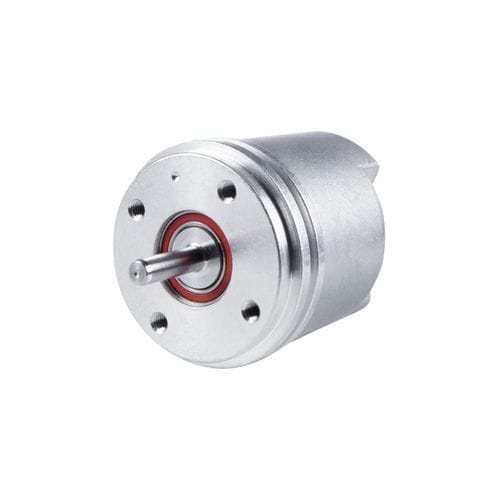

Absolute rotary encoder ROC/ROQ 1000

solid-shaftflange5VDC

Absolute rotary encoders with integral bearing Synchro flange Solid shaft for separate shaft coupling Positioning accuracy of down to ±60" 8 388 608 positions/rev. Multiturn functionality for up to 4096 revolutions Compensatory rotor coupling A metal bellows is used to couple the rotary encoder. This coupling compensates for axial movements, radial misalignment, and angular offset, thereby preventing loads on the rotary encoder's bearing and a reduction in service life. Proven standard The rotary encoders of this series boast high reliability and perfected technology in a robust design. For decades, they have proven themselves around the world in great numbers and in a wide variety of applications. Versatile mounting The ROC/ROQ 1000 rotary encoders can be mounted in different ways. Based on the given requirements, mounting can be performed with fixing clamps and a synchro flange or via a front-face fastening thread and an adapter flange. Compact design The rotary encoders of this series feature high ruggedness and reliability in a very compact design with an outer diameter of just 35 mm. Their small footprint makes them ideal for very tight installation spaces.
