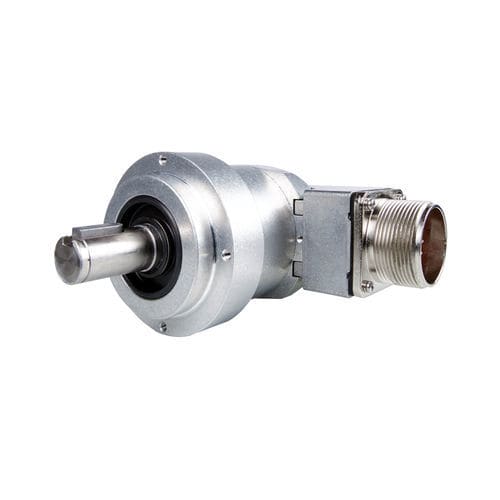

Incremental rotary encoder ROD 600

solid-shaftflangeCAN

Incremental rotary encoders with integral bearing Positioning accuracy of down to ±13" Up to 5000 signal periods per revolution Protection rating: IP66 Interfaces: HTL and TTL Precise positioning Rotary encoders with a bearing and stator coupling ensure consistently high accuracy. Thanks to optimally matched components, system accuracies of down to ±13 arc seconds are attained. Compensatory rotor coupling A separate rotor coupling is used to couple the rotary encoder. This coupling compensates for axial movements, radial misalignment, and angular offset, thereby preventing loads on the rotary encoder's bearing and a reduction in service life. Proven technology The ROD 600 rotary encoders feature high reliability and perfected technology with a robust design. For decades, these encoders have proven themselves in great numbers within machine tools. Connection flexibility The cable can be connected either axially or radially. A special swivel mechanism in the encoder's housing allows the flange socket to be easily rotated in the desired direction. As a result, the cable outlet is always exactly where it should be.
