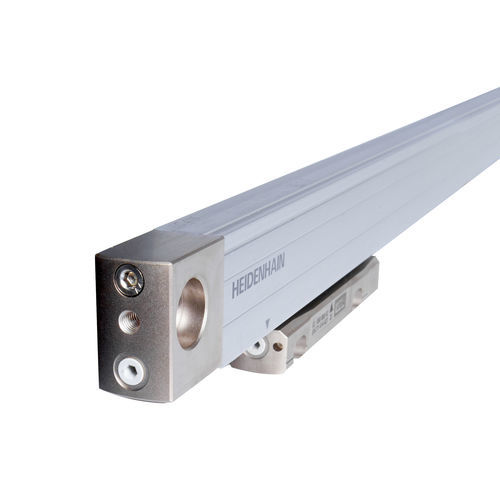

Absolute linear encoder LC 400

opticalsealedDRIVE-CLiQ

Absolute linear encoders with slimline scale housing Compact design for limited installation space Particularly easy installation with mounting rail Available with functional safety Interfaces: EnDat, Fanuc, Mitsubishi, Panasonic, and DRIVE-CLiQ Compact design The LC 400 linear encoders deliver high accuracy and a rugged design with a small footprint. Their compact dimensions make them ideal for very limited installation space. Functional safety The LC 400 linear encoders are available with functional safety and fault exclusion for the mechanical connection. When integrated into a system, this solution for applications with up to SIL 2 can minimize malfunctions and enable safe machine tool operation. Reliable protection A proven seal design optimally protects the LC 400 encoders from contamination. Their wide scanning field also reduces contamination sensitivity. Localized impurities on the measuring standard have very little influence on signal quality or measurement accuracy. Optical scanning Sealed linear encoders from HEIDENHAIN deliver optimal results on machine tools. The quality of their graduations and their optical scanning method with small signal periods are key factors in attaining perfectly machined surfaces.
