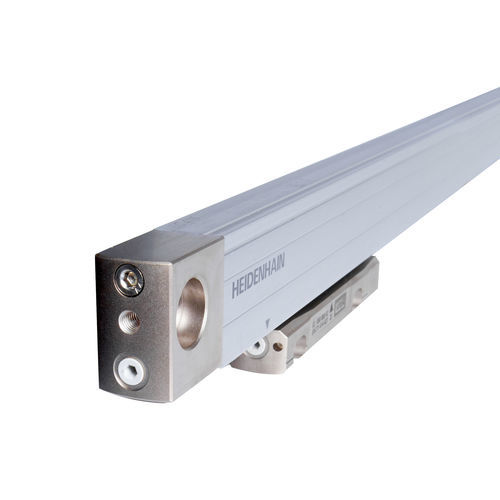

Incremental linear encoder LS 400sealed5VDC4.5VDC
Add to favorites
Compare this product
Characteristics
- Type
- incremental
- Construction
- sealed
- Supply voltage
- 5VDC, 4.5VDC
- Protection level
- standard, rugged, IP64, IP53
- Other characteristics
- compact, guided
- Length
Min.: 0 mm
(0 in)Max.: 2,040 mm
(80.315 in)- Resolution
Min.: 3 µm
Max.: 5 µm
- Process temperature
Min.: 0 °C
(32 °F)Max.: 50 °C
(122 °F)
Description
Incremental linear encoders with slimline scale housing
Compact design for limited installation space
Particularly easy installation with mounting rail
Interfaces: 1 VPP and TTL
High contamination tolerance
A proven seal design optimally protects the LS 400 encoders from contamination. Their wide scanning field further reduces contamination sensitivity. Localized impurities on the measuring standard have very little influence on signal quality or measurement accuracy.
Easy installation
Linear encoders from HEIDENHAIN are very installer-friendly. As guided systems, they provide wide mounting tolerances for fast and easy installation.
Compact design
The LS 400 linear encoders deliver high accuracy and a rugged design with a small footprint. Their compact dimensions also make them ideal for very limited installation space.
