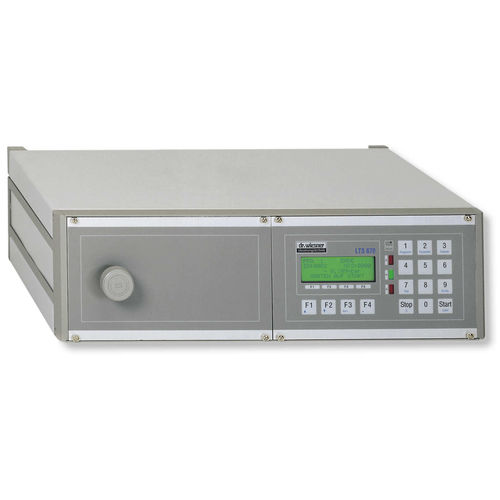

Leakage testing system LTS 670

pressurepartsindustrial

Approved leakage testing system for differential-pressure method or relative-pressure method. • 64 test programs storable • text indicator on the LCD-display in different languages • with statistical evaluation of the measurement values • for vacuum or overpressure tests available Basic functions The LTS 670 leakage test system can be used to check hollow objects for leaks with overpressure or vacuum. The device comes equipped with a desk top housing and can be controlled manually or using external control signals. The LTS 670 leakage test system is suitable for the relative-pressure method or the differential-pressure method All device models feature the following basic functions: - 64 test programs - Display of measured values in various formats on the built-in LCD display - Textual help for setting parameters in different languages - Password protection against unauthorized change of parameters - Permanent self-test using monitoring of the measurement signal - Serial interface for output of measuring values to a subsequent process data documentation system or a printer - Test process controlled manually or by external signals - Comprehensive testing functions and diagnosis features - Statistical functions
