VOC volatile organic compound sensor VOC100

for test and process engineeringwith temperature sensorwith humidity sensor

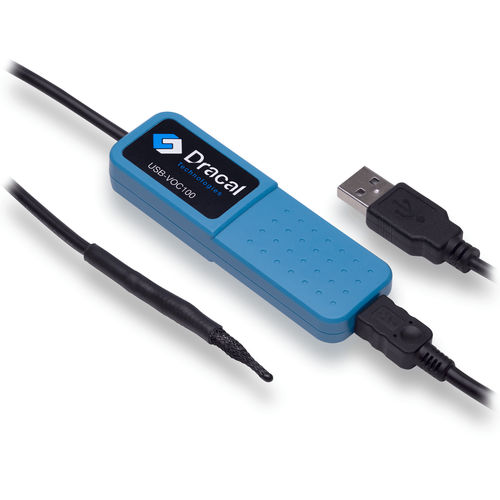

VOC100 USB VOC, temperature and relative humidity sensor From: USD$152.99 Typical operating range and precision Volatile Organic Compounds - 0 to 32,768 ppb - Qualitative Temperature - -40°C to 70°C - ±0.3°C Relative humidity - 10 %RH to 95 %RH - ±2.0 %RH Additional information • Free data acquisition toolkit • 3-point user calibration mechanism • VCP mode Description VOC100: USB-Connected Gas sensor for monitoring indoor air quality (VOC) as well as measuring temperature and relative humidity. The VOC100 is an Indoor Air Quality (IAQ) Volatile Organic Compounds (VOCs) detector. It is built around the AMS CCS811 digital gas sensor for monitoring indoor air quality. Among detected compounds are a wide range of biologically and chemically generated VOCs like paint, coating, fuel, alcohol, benzene, refrigerant, and more. This VOC detector also includes a cutting edge precision temperature/relative humidity measurement device. Possible applications • Indoor Air Quality (IAQ) monitoring • Home, offices, laboratories • OEM integration • Laboratories • Engineering and R&D • Education Data acquisition Be instantly operational with our free data acquisition toolkit. Includes: • Our data logger QTenki • Our command-line data integration tool usbtenkiget • Our command-line calibration tool usbtenkical Easy to integrate in your own applications: • Code samples for many programming languages • Integration with LabView
