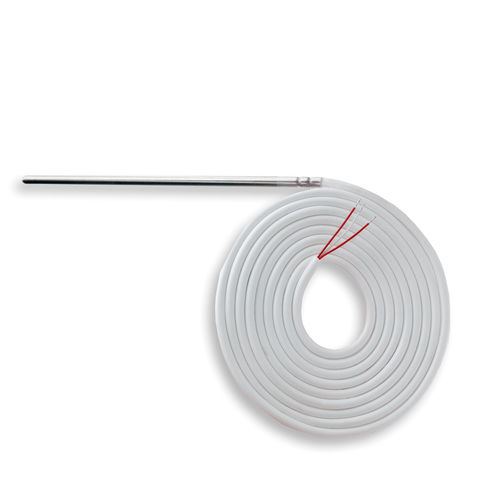

Resistance temperature probe RTD-PT100-SIL

Pt100RTDstainless steel

RTD-PT100-SIL Precision PT100 RTD probe USD$30.99 Material: - Stainless steel probe - Silicon cable - Compatible with our RTD converters Description RTD-PT100-SIL: RTD (PT100) probe with silicon cable. This probe is built using a precision 1/3 Class B Resistance Temperature Detector (RTD) element, a stainless steel sleeve and a silicon cable for the most demanding applications. The 3-wire configuration allows for constant correction of errors caused by temperature variations and cable length. Specifications • Type: PT100 (385), 3-wire • Accuracy type: 1/3 Class B (IEC 751-95), ±0.04Ω (0.1%) • Element resistance at 0°C: 100 ohms • Accuracy: • ±0.5°C (-20°C to 20°C) • ±0.7°C (-200°C to 200°C) Miscellaneous • Probe material: stainless steel 316 • Probe length: 15 cm (6 in.) • Probe diameter: 5 mm (0.2 in.) • Cable material: Extreme temperature Silicon • Cable length: 2 m (6 feet) • Cable diameter: ≤ 4 mm • RoHS compliant
