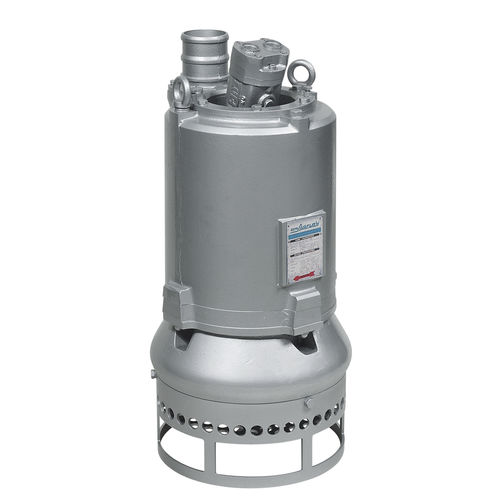

Impeller pump HY24
slurryhydraulic motorsubmersible

Impeller pump - HY24 - DRAGFLOW - slurry / hydraulic motor / submersible
Impeller pump - HY24 - DRAGFLOW - slurry / hydraulic motor / submersible
Impeller pump - HY24 - DRAGFLOW - slurry / hydraulic motor / submersible - image - 2
Impeller pump - HY24 - DRAGFLOW - slurry / hydraulic motor / submersible - image - 3
Impeller pump - HY24 - DRAGFLOW - slurry / hydraulic motor / submersible - image - 4
Impeller pump - HY24 - DRAGFLOW - slurry / hydraulic motor / submersible - image - 5
Add to favorites
Compare this product
Go to the DRAGFLOW website for more information

Characteristics

Technology
impeller
Fluid
slurry
Operation
hydraulic motor
Priming
submersible
Mobility
stationary, mobile
Domain
industrial
Applications
dredging, lifting
Fluid specification
for abrasive fluids
Protection level
abrasion-resistant, rugged
Other characteristics
heavy-duty, flow, variable-speed
Flow

Min.: 0 m³/h
(0 ft³/h)

Max.: 250 m³/h
(8,828.66668 ft³/h)

Pressure

300 bar, 350 bar
(4,351.132 psi, 5,076.321 psi)

Head

Min.: 0 m
(0'00" )

Max.: 47 m
(154'02" )

Power

24 kW, 32.5 kW
(32.63 hp, 44.19 hp)

Fluid temperature

40 °C
(104 °F)

Width

450 mm
(17.72 in)

Height

970 mm
(38.19 in)

Weight

220 kg
(485.02 lb)

Description

The HY24 is an hydraulic pump with high abrasion resistance and can handle material concentrations up to 70%. It is the ideal solution for industrial, mining, and dredging applications in other fields, guaranteeing maximum efficiency and productivity. Main characteristics High efficiency agitator, reversible and high chrome for long life and continuous flow lifting of deposited sediments. Low rotation speed: reduced wear and long term efficiency. Rugged and heavy duty construction: highly resistant components for loaded and abrasive mixes.
