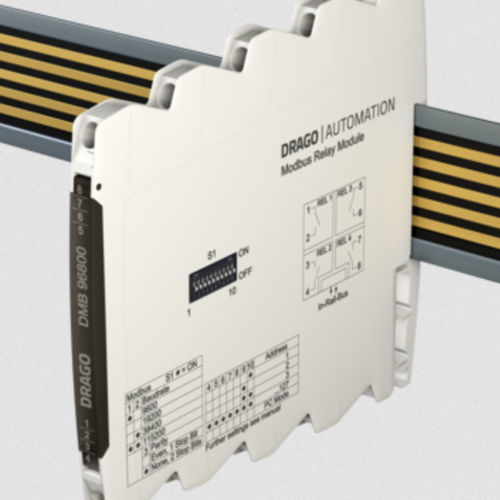

DC relay module DMB 96800 B

ACprogrammableswitching

4 independent power relays, Modbus RTU 4 independent power relays Programmable switch-ON and switch-OFF behavior Extensive programmable operating functions such as limit value monitoring Protective 5-way separation up to 300 V AC/DC, test voltage 3 kV Status indication for each relay In-Rail-Bus Connector for Modbus and power supply Extremely slim only 6.2 mm installation width Made in Germany 5 Years Warranty The Modbus 4-channel relay module can be used to switch four electrically isolated relays via a Modbus interface. Various time functions can be used to influence the switching behaviour. All parameters can be set via Modbus RTU Interface. A subset of the most common settings is available via DIP switches. The 5-way isolation guarantees reliable decoupling of the outputs from the processing circuit and the auxiliary power circuit. Auxiliary power and Modbus RTU must be connected via the In-Rail-Bus connector (see accessories).
