With this reference temperature sensors you can increase significant the measurement accuracy of the above mentioned LR-Cal temperature calibrators (-2I versions). The measuring range is 0°C...+1400°C. This makes this external sensor ideal for the dry block temperature calibrator LR-Cal SOLAR. Optional factory and DAkkS certificates of calibration are available.
They are suitable for direct connection to the with "REF" marked measuring input of the -2I versions. The temperature values of the external reference sensors LR-Cal LRT F are indicated on the second line of the display of the LR-Cal temperature calibrators (-2I versions). The calibrator must be configured accordingly.
The LR-Cal LRT F reference temperature sensors are thermally preconditioned to ensure long term stability and to minimise the risk of contamination when used at high temperatures.
Measuring range - °C - 0...+1400
500 x 7.0 diameter

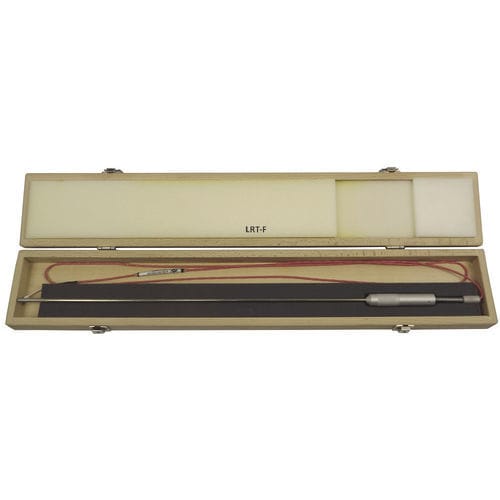

Wooden case included in scope of standard delivery
Sensor - - S Pt-Pt 10% Rhodium, type S
Isolation - - MgO
Sheath - - High purity aluminium KER 710
Cable length - m - 1 (compensated)
Connection - - Miniature plug type S
